ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics

Large Image : ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-R907

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Number Of Stations:	50	Volume:	50L
Constant Temperature:	50℃± 0.5℃ And 100℃± 0.5℃	Sample Size:	(38 × 13 × Thickness) Mm
Notch Length:	19±0.1	Specimen Holder:	Inner Groove Width 12mm
Heat Conducting Medium 1:	Soft Water (recommended Below 90 ℃)	Heat Conducting Medium 2:	Stator Oil (above 90 ℃)
Power:	(220-15%-220+10%) VAC 50Hz 3kW	Operating Ambient Temperature:	10℃-35℃
Host Size(LWH):	900* 450*480mm	Host Weight:	About 30kg
Highlight:	Plastics Environmental Stress Cracking Tester , ESCR Environmental Stress Cracking Tester

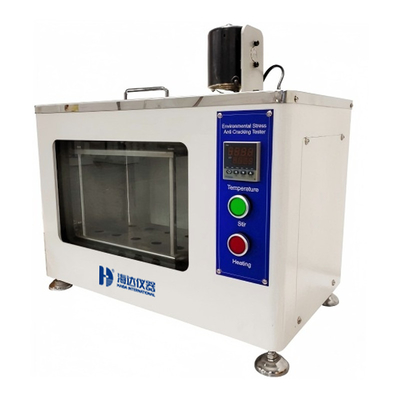

Environmental Stress Cracking Tester

Description:

Environmental Stress Cracking Tester is used to determine of the susceptibility of ethylene plastics, as defined in terminology D883, to environmental stress-cracking when subjected to the conditions specified in ASTM D1693-01, under certain conditions of stress and in the presence of environments such as soaps, wetting agents, oils, or detergents, ethylene plastics may exhibit mechanical failure by cracking.

ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics 0

Testing Principle:

Bent specimens of the plastic, each having a controlled imperfection on one surface, are exposed to the action of a surface-active agent. The proportion of the total number of specimens that crack in a given time is observed.

Technical Parameters

Model	HD-R907
Number of stations	50
Volume	50L
Constant temperature	50℃± 0.5℃ and 100℃± 0.5℃
Sample size	(38 × 13 × Thickness) mm
Notch length	19±0.1
Specimen holder	Inner groove width 12mm
Heat conducting medium	Soft water (recommended below 90 ℃)
	Stator oil (above 90 ℃)
Power	(220-15%-220+10%) VAC 50Hz 3kW
Operating ambient temperature	10℃-35℃
Host size(LWH)	900* 450*480mm
Host weight	About 30kg
Nicking device
Blade length	19±0.1mm
Blade thickness	0.23±0.03mm
Blade angle	14°±2°
Stroke of nicking device	(0-13)mm
Maximum depth of notch	3.5mm
Unit size(LWH)	300120300mm
Device weight	About 12kg

ABOUT HAIDA

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics 1

ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics 2

ASTM D1693 Environmental Stress Cracking Tester Environmental Stress Cracking Resistance Tester (ESCR) for Plastics 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
