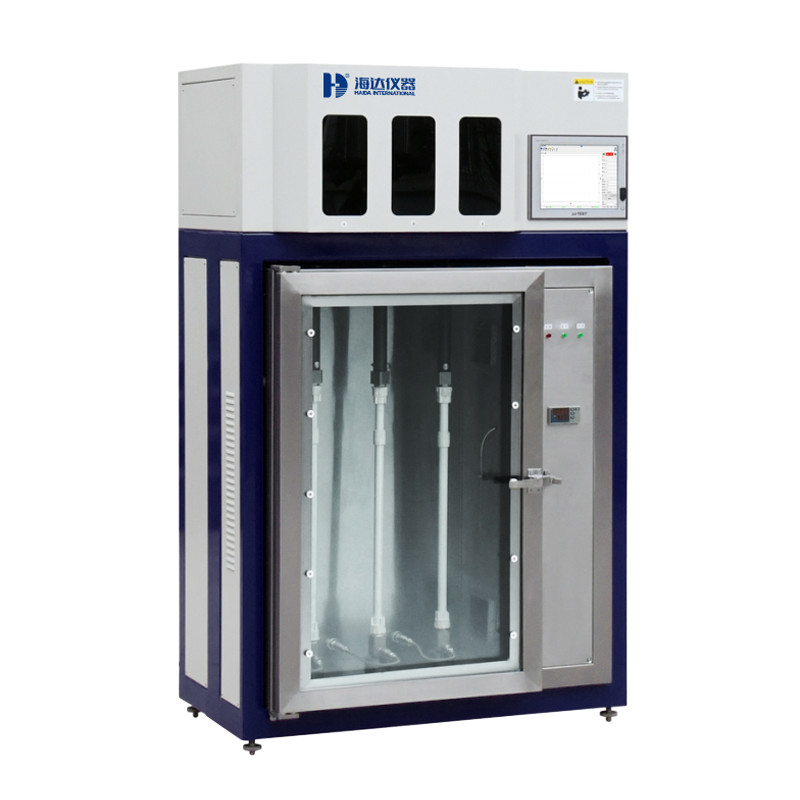

Plastic Pipe Pulling Test Machine Pull-out Tester for Plastic Pipe Fitting

Brand Name:	HAIDA
Model Number:	HD-R906
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Applicable Scope Of Pipe:

DN16--DN63

Single Position Dead Load Application Rang:

20N--5000N

Temperature Control Range:

Room Temperature--95℃

Control Accuracy:

±0.5℃

Temperature Uniformity:

±2℃

Test Station:

Leverage Ratio:

1:10

Tensile Deformation Range:

0--100mm

Accuracy Of Force Value:

Nominal Value ±1%

Supply Ability:

300 Sets per Month Haida

Highlight:

Plastic Pipe Pulling Test Machine

Product Description

Series Pull-out Tester Plastic Pipe Fitting

Description:

Series Pull-out tester Plastic pipe fitting is applicable to test the drawing resistance of polyethylene pressure pipe when it bears longitudinal tension at different temperatures after connecting with pipe fittings.

Plastic Pipe Pulling Test Machine Pull-out Tester for Plastic Pipe Fitting 0

Test Standard:

ISO 3501, ISO10508 and the equivalent.

Technical Parameters

Model	HD-R906
Applicable scope of pipe	DN16--DN63
Single position dead load application rang	20N--5000N
Temperature control range	room temperature--95℃
Control accuracy	±0.5℃
Temperature uniformity	±2℃
Test station	3
Leverage ratio	1:10
Tensile deformation range	0--100mm
Accuracy of force value	Nominal value ±1%
