Plastic Pipe Thickness Tester

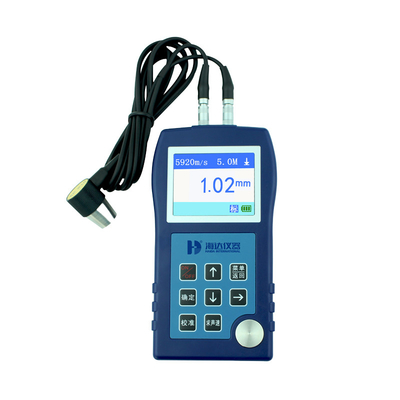

Large Image : Plastic Pipe Thickness Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-R903

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Test Range1:	Full Range: 0.55-500mm	Test Range2:	Ultra-thin Mode: 0.55-1mm
Test Range3:	Standard Mode: 0.75-500mm (Standard Probe: 5P, φ10)	Display Accuracy:	0.01mm
Measurement Error 1:	±(0.5%H+0.05)mm	Measurement Error 2:	H Is The Thickness Of The Object Being Measured
Material Sound Velocity:	1000-9999m/s	LCD Screen:	2.3-inch Large Color Screen Display
Calibration Function:	Instrument Calibration And Sound Velocity Calibration	Host Dimensions:	130mm70mm26mm
Power Supply:	Three (7) Alkaline Batteries	Operating Temperature:	0℃-50℃
Operating Humidity:	20%RH—90%RH
Highlight:	Plastic Pipe Thickness Tester , Pipe Thickness Tester , Plastic Thickness Tester

Plastic Pipe Thickness Tester

Description:

HD-R903 Plastic Pipe Thickness Tester is suitable for high-precision thickness measurement of various materials, and can be applied to the thickness measurement of objects made of plastics, various metals (steel, stainless steel, aluminum, copper, etc.), quartz, glass, etc.

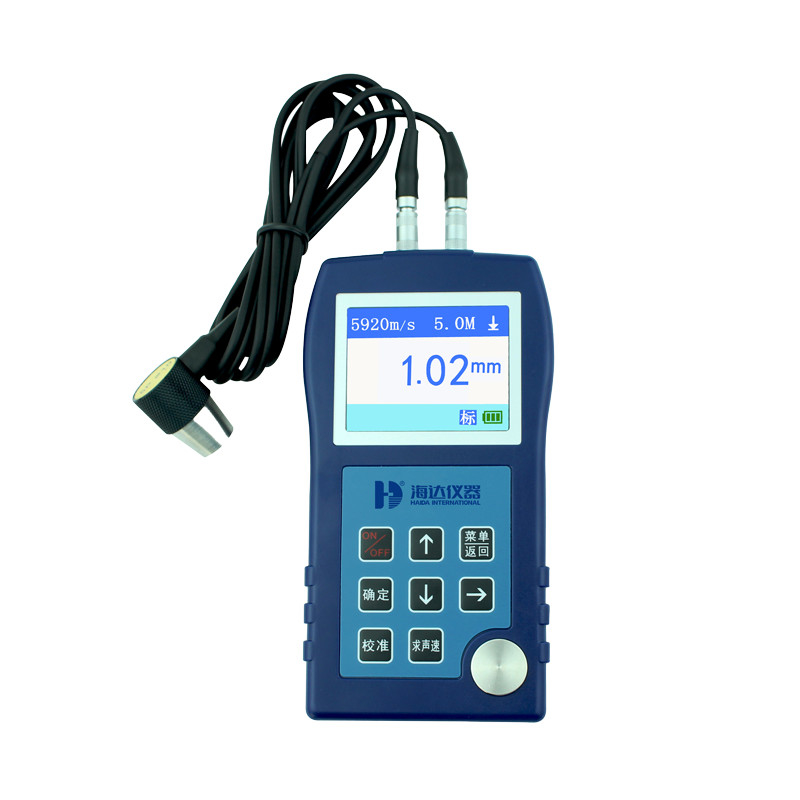

Plastic Pipe Thickness Tester 0

Testing Principle:

Place the probe on the contact surface on one side of the object to be measured, and the thickness of the object to be measured can be measured quickly and accurately.

Technical Parameters

Model	HD-R903
Test range	Full range: 0.55-500mm
	Ultra-thin mode: 0.55-1mm
	Standard mode: 0.75-500mm (Standard probe: 5P, φ10)
Display accuracy	0.01mm
Measurement error	±(0.5%H+0.05)mm
	H is the thickness of the object being measured
Material sound velocity	1000-9999m/s
LCD screen	2.3-inch large color screen display
Calibration function	Instrument calibration and sound velocity calibration
Data storage function	Each group can store 200 data, a total of 10 groups can store 2000 data
Power level display	Yes
Shutdown method	Manual/automatic (automatic shutdown after 5 minutes of no operation)
Host dimensions	130mm70mm26mm
Power supply	Three (7) alkaline batteries
Operating temperature	0℃-50℃
Operating humidity	20%RH—90%RH
Weight	125g (excluding probe and battery)
