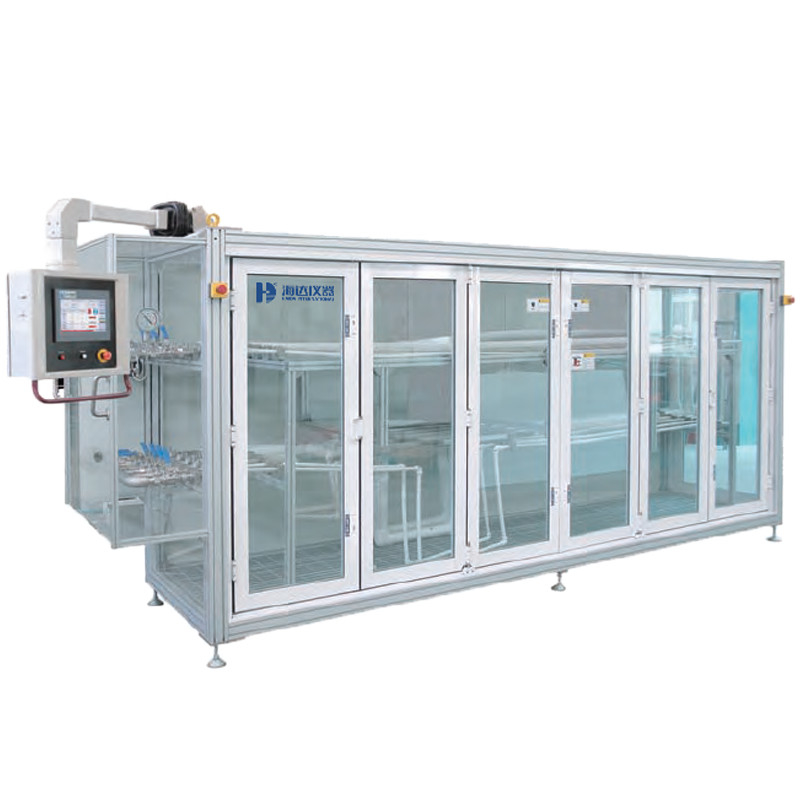

Plastic Pipe Thermal Cycle Testing Machine

Large Image : Plastic Pipe Thermal Cycle Testing Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-R902

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Pressure Range:	4.00bar-16.00bar, 0.400Mpa-1.600Mpa (Customizable)	Pressure Control Accuracy:	±0.05 Mpa
Number Of Test Stations:	6	Alternation Time Between Hot And Cold Water:	＜ 60s
Cycle Period:	300s-1200s	Maximum Measured Cross-sectional Area:	4200mm² Or 6200mm²
Maximum Straight Pipe Length Of Sample:	3700mm	Control Mode:	PLC Control
Display Mode:	Touch Screen Display	Number Of Cycles:	Selectable 1-100000
Temperature Range (cold Water):	20℃ To RT (selectable) Accuracy:±2℃	Temperature Range (hot Water):	RT To 95℃ (selectable) Accuracy:±1℃
Temperature Display Error:	1℃	Temperature Uniformity:	≤±1℃
Inlet And Outlet Temperature Difference:	2℃	Power Supply:	380V±10% 50Hz
Overall Dimensions:	4500(L)×3000(W)×2000(H)mm(6 Stations)	Installation Dimension:	6000(L)×4000(W)×3000(H)
Optional Function 1:	A: Flow Measurement And Regulation (optional)	Optional Function 2:	B: Prestress Application System (optional)
Highlight:	Thermal Cycle Testing Machine , Plastic Pipe Testing Machine

Plastic Pipe Thermal Cycle Testing Machine

Description:

Plastic Pipe Thermal Cycle Testing Machine is applicable to all kinds of plastic pipes, pipe fittings and pipe systems. Under the condition of pressure and different temperatures within the specified time After completing the test to check the leakage and rupture of pipes and pipe fittings.

Plastic Pipe Thermal Cycle Testing Machine 0

Test Standard:

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Technical Parameters

Model	HD-R902
Pressure range	4.00bar-16.00bar, 0.400Mpa-1.600Mpa (Customizable)
Pressure control accuracy	±0.05 Mpa
Number of test stations	6
Alternation time between hot and cold water	＜ 60s
Cycle period	300s-1200s
Maximum measured cross-sectional area	4200mm² or 6200mm²
Maximum straight pipe length of sample	3700mm
Control mode	PLC control
Display mode	touch screen display
Number of cycles	selectable 1-100000
Temperature range (cold water)	20℃ to RT (selectable) accuracy:±2℃
Temperature range (hot water)	RT to 95℃ (selectable) accuracy:±1℃
Temperature display error	1℃
Temperature uniformity	≤±1℃
Inlet and outlet temperature difference	2℃
Power supply	380V±10% 50Hz
Overall dimensions	4500(L)×3000(W)×2000(H)mm(6 stations)
Installation dimension	6000(L)×4000(W)×3000(H)
Optional function	A: Flow measurement and regulation (optional)
	B: Prestress application system (optional)
Model: HD-R902-200A	With Flow measurement and regulation
Model: HD-R902-200B	With Prestress application system
Model: HD-R902-200AB	With Flow measurement and regulation and Prestress application system

ABOUT HAIDA

Plastic Pipe Thermal Cycle Testing Machine 1

Plastic Pipe Thermal Cycle Testing Machine 2

Plastic Pipe Thermal Cycle Testing Machine 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
