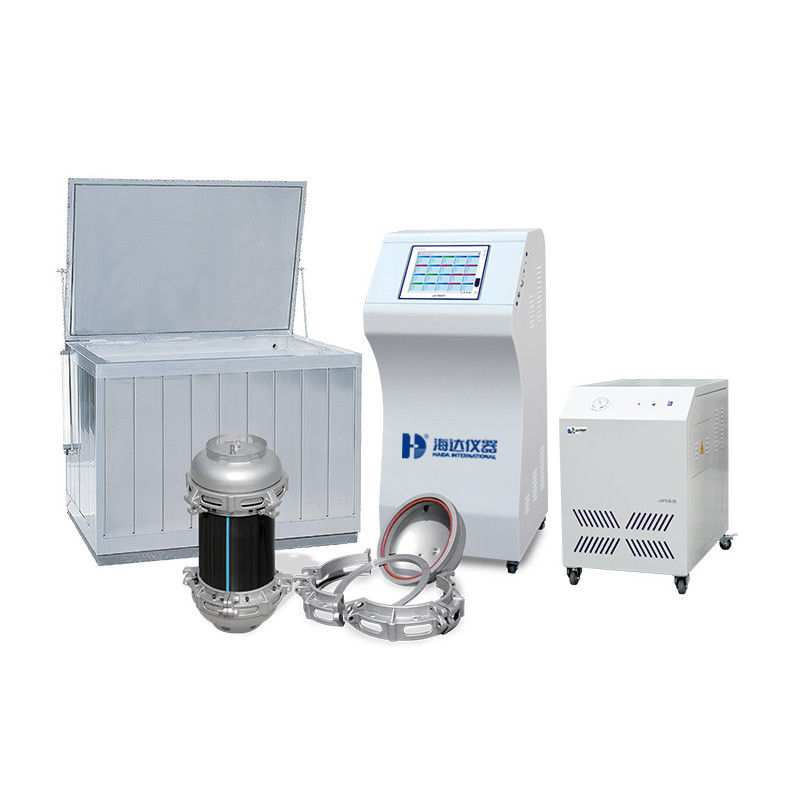

Plastic pipeline Hydrostatic Pressure Tester

Large Image : Plastic pipeline Hydrostatic Pressure Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-R901

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Max. Pressure (A):	0: 10Mpa, 1: 16Mpa , 2: 20Mpa , 3: 25Mpa … Max. Pressure Can Up To 200Mpa	Test Stations (BB):	03: 3 Stations, 05: 5 Stations, 10: 10 Stations, 15: 15stations … Max. Test Stations Number Can Up To 100 Stations
Pipe Diameter Range:	Φ2-Φ2000mm	Pressure Resolution:	0.001Mpa (0.01bar Or 1PSI)
Timing Range:	0-10000h	Time Resolution:	1s
Timing Mode:	Counter-up, Counter-down	Control Method:	LED + PC Touch Screen (Industrial PC)
Power Supply1:	Pressure Control Unit: (220-15%～220+10%)VAC 50Hz 0.5KW	Power Supply2:	Pressure Supply Unit: (380-15%～380+10%)VAC 50Hz 5.0Kw Three Phase Five Wire
Highlight:	Hydrostatic Pressure Tester , Plastic pipeline Hydrostatic Pressure Tester , pipeline Hydrostatic Pressure Tester

Plastic pipeline Hydrostatic Pressure Tester

Description:

Plastic pipeline Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It is suited to various pipe specimens.

Plastic pipeline Hydrostatic Pressure Tester 0

Test Standard:

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Testing Principle:

Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature.

Advantage:

1. With the functions of specimen pre-treatment, real time monitoring,test data storage, data power-off protection (memory) and recovering when powered on, etc.

2. It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.

3. For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant temperature.

4. Self-developed solenoid valve greatly raises its working life, further maintenance is not needed.

5. Friendly display interface provides multi-languages to meet the requirements of customers all the world.

6. Protective measures are from electric part, mechanical part as well as software.

7. Testing data memory time for pressure control unit: 7 days (offline).

Software Interface:

Technical Parameters

Model	HD-R901-(ABB)
Max. pressure (A)	0: 10Mpa, 1: 16Mpa , 2: 20Mpa , 3: 25Mpa … Max. pressure can up to 200Mpa
Test stations (BB)	03: 3 stations, 05: 5 stations, 10: 10 stations, 15: 15stations … Max. test stations number can up to 100 stations
Pipe diameter range	Φ2-Φ2000mm
Pressure resolution	0.001Mpa (0.01bar or 1PSI)
Timing range	0-10000h
Time resolution	1s
Timing mode	Counter-up, counter-down
Control method	LED + PC	Touch screen (Industrial PC)
Test result storage	Storage and print through PC	Data exported to USB, then print by another PC
Pressure supply unit	Select suitable pressure supply unit for different models of pressure control unit.
	1. With the property of high pressure and capacity;
	2. Automatic water compensation to avoid the pump being damage due to lack of water;
	3. Low noise;
	4. Protection system for electricity leakage or water shortage.
Power supply	Pressure control unit: (220-15%～220+10%)VAC 50Hz 0.5KW
	Pressure supply unit: (380-15%～380+10%)VAC 50Hz 5.0Kw Three phase five wire

ABOUT HAIDA

Plastic pipeline Hydrostatic Pressure Tester 1

Plastic pipeline Hydrostatic Pressure Tester 2

Plastic pipeline Hydrostatic Pressure Tester 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
