Sampling Injection Molding Machine Vertical Injection Molding Machine

Brand Name:	HAIDA
Model Number:	HD-R917
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Application:

Plastic Testing

Screw Diameter:

22*28 Mm

Injection Pressure:

1625*1004 Kgf/cm²

Injection Capacity:

40*65 Cm³

Injection Weight(P.S):

39*63 Gr

Injection Rate:

1.4 *2.2 Oz

Screw Speed:

0~150 R.p.m

Screw Stroke:

90 Mm

Nozzle Stroke:

120 Mm

Nozzle Contact Force:

2.4 Tf

Clamping System:

Hydraulic

Supply Ability:

300 Sets per Month Haida

Highlight:

Sampling Injection Molding Machine

Vertical Injection Molding Machine

Vertical Sampling Injection Molding Machine

Product Description

Sampling Injection Molding Machine

Description:

Vertical injection molding machine is the right machine for pressing, molding and encapsulation injection in one process. Its precise closed side with high template parallelism ensures accurate results. With this injection molding unit, you can functionalize molded components in the same process.

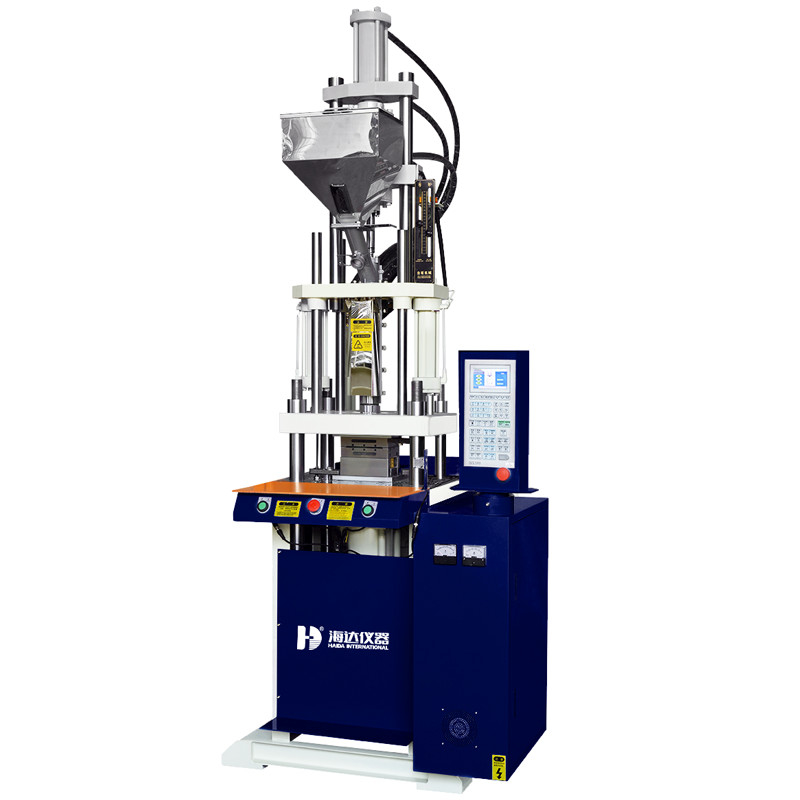

Sampling Injection Molding Machine Vertical Injection Molding Machine 0

Sample range:

PP, PC, ABS, polyethylene terephthalate (plastic), PVC, FRPP/PVC, random polypropylene, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid.

Technical Parameters:

Model	HD-R917
Injection Unit	Screw Diameter	mm	22	28
	Injection Pressure	kgf/cm²	1625	1004
	Injection Capacity	cm³	40	65
	Injection Weight(P.S)	gr	39	63
	Injection Rate	oz	1.4	2.2
	Injection Rate	cc/s	28	45
	Screw Speed	r.p.m	0～150
	Screw Stroke	mm	90
	Nozzle Stroke	mm	120
	Nozzle Contact Force	tf	2.4
Clamping Unit	Clamping System	......	Hydraulic
	Clamping Force	tf	18
	Clamping Stroke	mm	200
	Max.Mould Space	mm	240
	Min.Mould Height	mm	40
	Overall Size Of Platens(HXV)	mm	420*250
	Space Between Columns(HXV)	mm	310*130
	Space Between Columns (HXV)	tf	0.7
	Hydraulic Ejector Force	mm	28
Electrical Equipment & General	Drive Motor	kw	3.7(5HP)
	Heater	kw	2.0
	Dimension of Machine(LXWXH)	m	1.20.92.5
	Weight Of Machine	t	0.65
	Shipping Size(LXWXH)	m	1.41.12.25
	Shipping Weight	t	0.8
	Oil Tank Capacity	L	90
	Cooling Water	l/hr	400~600

ABOUT HAIDA

Sampling Injection Molding Machine Vertical Injection Molding Machine 1

Sampling Injection Molding Machine Vertical Injection Molding Machine 2

Sampling Injection Molding Machine Vertical Injection Molding Machine 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
