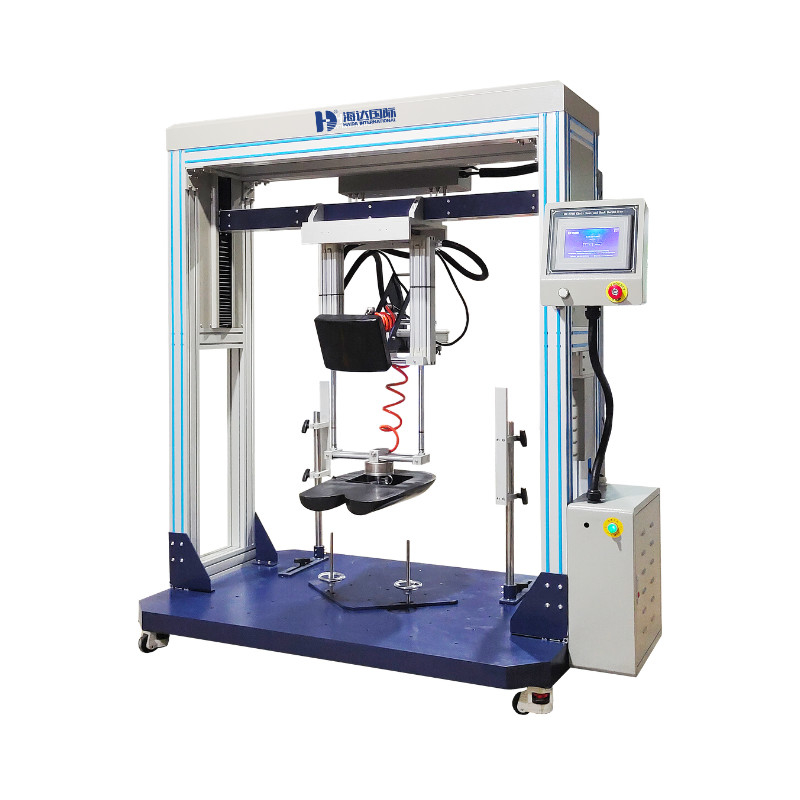

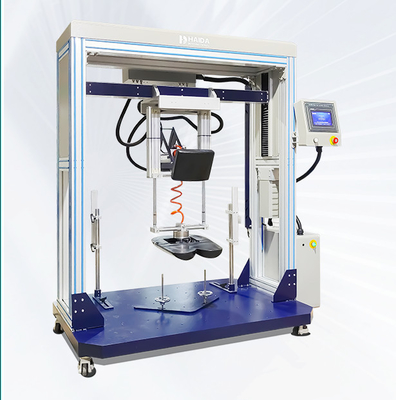

Air Pressure 0-150 Ib Electronic Chair Swivel Durability Testing Machine

Brand Name:	HAIDA
Model Number:	HD-F780
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Product Name:

Furniture Testing Equipment

Type:

Office Chair Back Durability Tester

Height Of Seat Back:

500~1200 Mm

Air Pressure:

0~150 Ib

Stroke:

0~18 In

Supply Ability:

300 Sets per Month Haida

Highlight:

Chair Durability Testing Machine

Chair Swivel Testing Machine

Swivel Durability Testing Machine

Product Description

Professional Furniture Testing Machines For Office Chair Back Durability

GENERL SPECIFICATIONS

Machine Dimensions: (W x D x H) 2750*1510*1350 mm

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 750kg

EQUIPMENT DESCRIPTION

The machine is designed to test seating and back by specified load block with setting force and speed to assess chair seating and back durability.

DESIGN STANDARD: EN 1728; EN 1335; BifmaX5.4

STANDARD FEATURES

Item	Description
Back Sensor	200KG
Seat Sensor	500KG
Force Actuator Height(Adjustable)	500-1200mm
Test Sample Seat Height (Adjustable)	300～600mm
Control system	PLC, Programmable controller

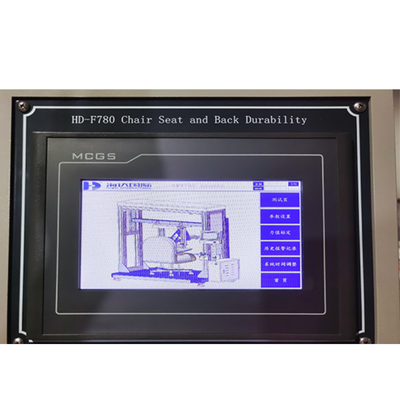

Display	Touch Screen
Back load	50~110KG
Seat load	100~300KG
Air Power	≥0.6MPa
Test speed(Adjustable)	1～30 time /min
Test Times(Adjustable)	1~999999times

CONFIGURATION:

Configuration	Name	Details
Items	Documents	Operation Manual1 piece; Factory Inspection Report1piece; Operation Video in USB flash disk with machine*1 piece
	Power line	1 piece
	Plug	1 piece(Per your local plug standard)
	USB flash disk	1G capacity *1 piece
	Air Pipe	1 piece
	Load Sensor	200kg Capacity *1 piece
	Load Sensor	500kg Capacity *1 piece
	Screw combination	2 Sets
	PLC System	1 set
	Cylinder	2 sets
	“L” type Chair blocker	2 sets
	Back Plate	1 piece
	Chair leg Ficture	Leg 1 piece; Arm1 piece; Seat *1 pieces

HAIDA INTRODUCTION

Founded in 2004, HAIDA Group is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.

Air Pressure 0-150 Ib Electronic Chair Swivel Durability Testing Machine 0

WHY CHOOSE US?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
