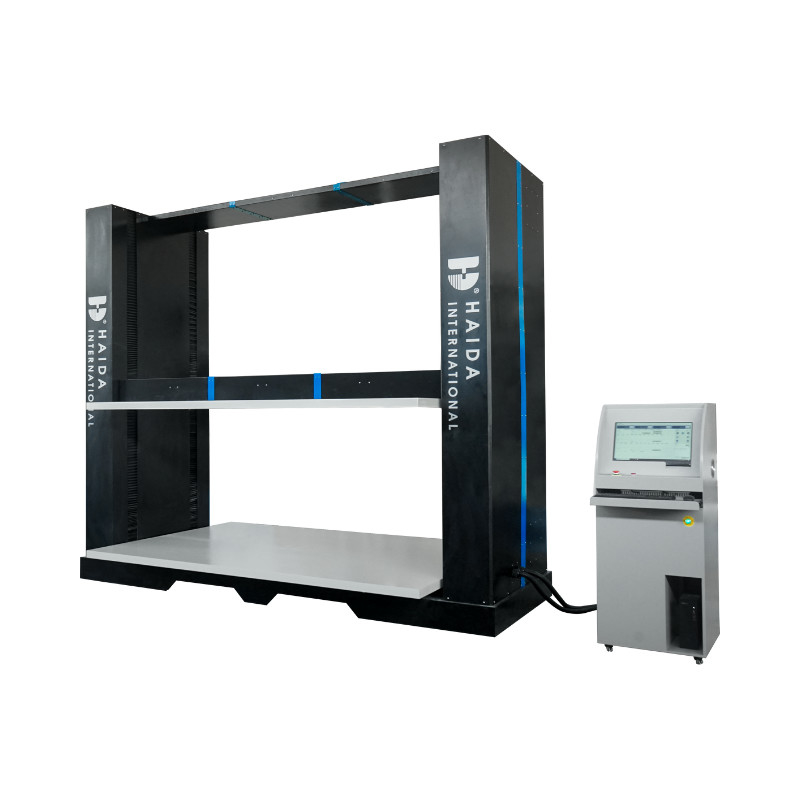

PC Mode Paper Testing Equipments , Paper Carton Compression Tester
HD-A502S-1500 Box Compression Test Machine.pdf
Specifications
Paper Carton Compression Tester
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation
1.About the machine:
Paper Carton Compression Tester / Paper Box Compressive Tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
2.Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, |
3.Specifications:
Paper Carton Compression Tester / Paper Box Compressive Tester | |
Model | HD-A505S-1500 |
Unit (switchable) | Kg, Lb, N |
Capacity (optional) | 2 T ,5T |
Load Resolution | 1/100,000 |
Stroke (exclude the grips) | 400 mm |
Load Accuracy | ≤0.5% |
Test Space (L×W×H) | 1500×1500×1500mm |
Speed of Compression | 10 ± 3 mm/min |
Operation Mode | PC |
Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
Structure | AC Frequency Conversion Motor ( Taiwan); |
Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
Power | 1ø, 220v/ 50Hz |
Weight | Approx. 850kg |
Safety Devices | Overload protection, overvoltage protection & limited position protection device |
Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features of Computer Servo Box Compressive Tester :
1. Paper Carton Compression Tester / Paper Box Compressive Tester Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. Paper Carton Compression Tester / Paper Box Compressive Tester can do test of compression, bending, pressure holding & fatigue.
11. Paper Carton Compression Tester / Paper Box Compressive Tester With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
