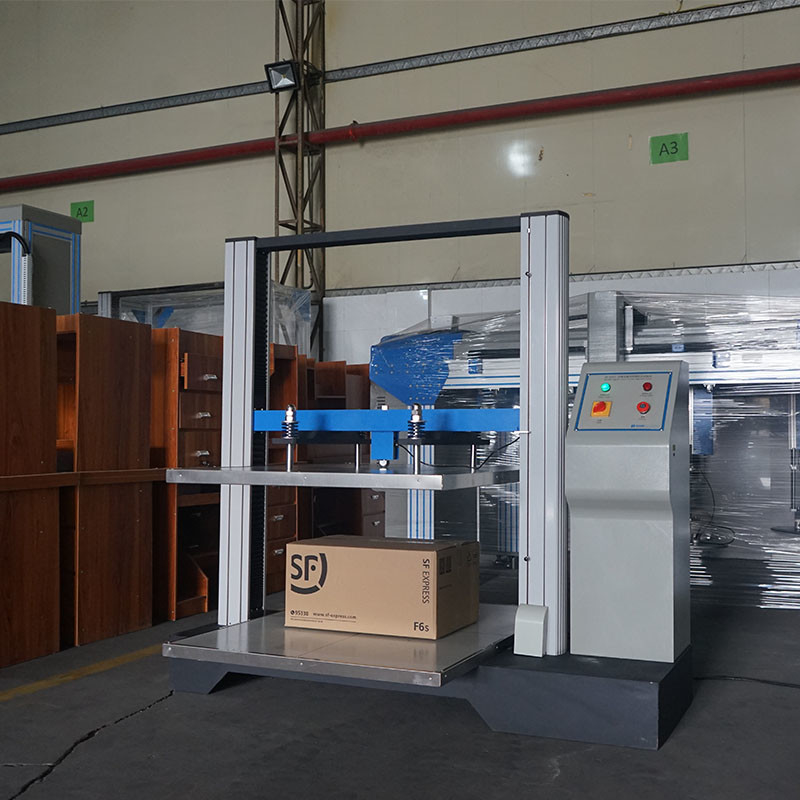

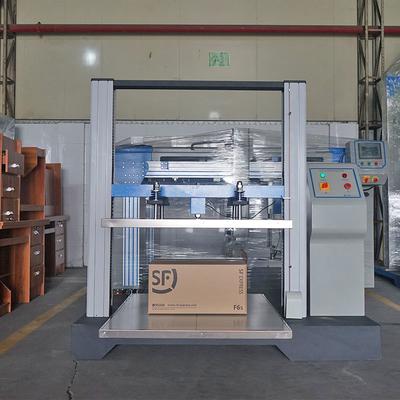

TM 2101 Box Compression Testing Machine 20KN Max. Force Paper Test Instrument

Product Description:

The Compression Tester is mainly used to test the compressive strength of secondary regular size corrugated cartons or other packaging containers, such as those used for instant noodles, cosmetics, beer, cereals, oil and other foods and beverages. The instrument has high control accuracy and has adopted advanced technologies, making it the most cost-effective universal carton compression tester in the domestic market.

Features:

Choosing translational, comparative mode at the same time to make a number of curve data comparison;

With a variety of measurement units, Measure In Imperial & Metric are switchable;

With self-return & auto-correction function;

With automatic magnification function, in order to achieve the most appropriate size of the graphics;

With the user-defined Test methods; with experimental data analysis function;

It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.



Technical Parameters:

Item	Specification
Application	Package Testing
Software	TM 2101
Max. Force	2000 Kg (20KN)
Load cell Resolution	1/250,000
Display	LCD Display
Load cell	1 Load Cell For Highest Accuracy
Control system	Windows 7, RS-232 Interface
Test Speed	10 ±3mm/min (0.01~200mm/min Adjustable)
Effective test area	1000×1200×1000mm
Test Force	Tensile, Compression, Bending, Shear, Peel
Laboratory testing equipment	Box compression testing machine, paper testing equipment

Applications:

The Role of Carton Packaging
Carton packaging plays an essential role in many industries. It can be used for products such as home appliances, computers, mobile phones, electronic products, washing machines, shoes, food, medicine, and furniture. Not only are corrugated boxes a common form of packaging, but honeycomb boxes are as well. Additionally, ingredients like edible oil and mineral water are often securely held in plastic barrels. Paper barrels, cartons, paper cans, and container barrels (IBC barrels) are other forms of packaging frequently used. Benefits of Carton Packaging
Apart from keeping items secure and safe, carton packaging has other benefits. It offers a variety of shapes and designs to cater to the requirements of any kind of product. Not to mention, it's extremely cost efficient, making it a great choice for people who are on a budget. It's also made of materials that are much easier to dispose of than traditional packaging methods, providing an eco-friendly solution. As such, carton packaging is a great movement forward in the industry of packaging and transportation.

Customization:



Packing and Shipping:

The package testing equipment should be packaged in appropriate shipping containers according to the manufacturer's guidelines. The containers should be designed to withstand the rigors of shipping and handling. All necessary packing materials and cushioning should be used to protect the equipment from damage during transit.

Once the package is ready, it should be shipped using a reliable and reputable delivery service. The package should be tracked throughout its journey so that it can be monitored for any delays or damages. The delivery service should also provide adequate insurance in case of any unforeseen losses.
