Drop Impact Test Machine , Two Station Furniture Testing Equipment

Brand Name:	HAIDA
Model Number:	HD-F736
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE

Cylinder Stroke:

300mm

Power:

1∮ AC 220V

Test Degree:

1～999999

Impact Speed:

10～30times/min

Drop Weight:

57kg、102kg、136kg

Machine Size:

1200mm×1450mm×2600mm(L*W*H)

Drop Height:

30mm,36mm,152mm

Supply Ability:

300 Sets per Month Haida

Highlight:

Two Station Furniture Testing Equipment

Drop Impact Furniture Testing Equipment

Product Description

Drop Impact Test Machine , Two Station Furniture Testing Equipment

EQUIPMENT DESCRIPTION

Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

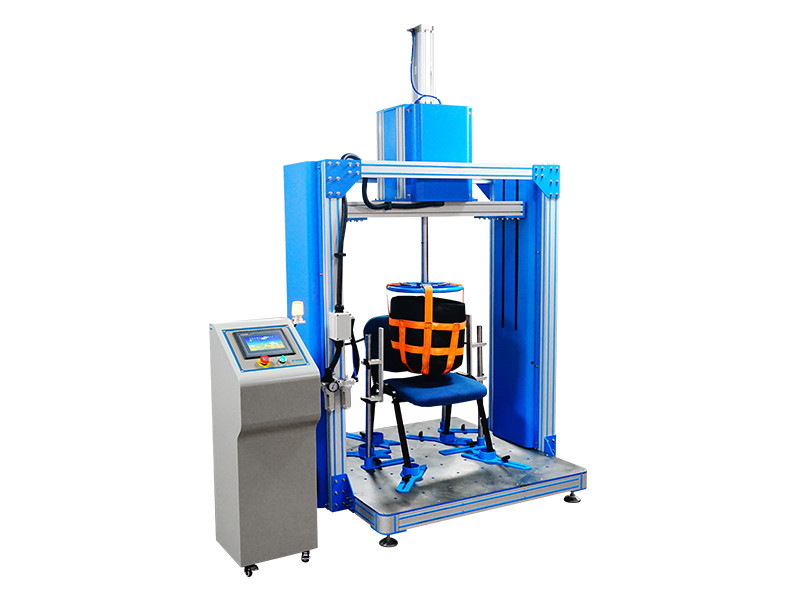

Drop Impact Test Machine , Two Station Furniture Testing Equipment 0

DESIGN STANDARD: Bifma x5.1-2017

TECHNICAL PARAMETERS

Control Mode	PLC Control
Display Mode	Touch Screen
Cylinder Stroke	300mm
Impact Speed	10～30times/min
Seat Height	200mm～600mm(adjustable)
Drop Weight	57kg,102kg,136kg
Drop Height	30mm,36mm,152mm
Test Degree	1～999999
Weight	About 500kg
Power Supply	1∮ AC 220V
Rate of Work	About 200W
Data Output	USB
Maximum external dimension	1200mm×1450mm×2600mm(LWH)
Main testing item	one impact and impact durability test

CONFIGURATION:

Configuration	Name	Details
Standard Configuration	Documents	Operation Manual*1 piece
		Factory Inspection Report*1 piece
		Operation Video in USB flash disk with machine*1 piece
	Power line	1 piece
	Air Pipe	1 piece
	Weight Bag	woven bag*1 piece
	Small steel ball bag	10kg 12 pieces +5kg3 pieces + 1kg *2 pieces
	Testing Clamp	Chair Fixing Seat for chair foot *5 pieces;
		Sample damage fixture*1 piece;
		Limit clamp*2 piece
	Fixed height block	152mm1piece ；36mm1 piece；30mm*1 piece
Optional Configuration	air compressor	Suggest ≥ 3P
Optional Configuration	Plug	1 piece(Per customer country’s standard)

HAIDA INTRODUCTION

Founded in 2004,OUR Group is the recognized Dongguan,China market leader in the testing equipment industry, having four main manufacture series:Accelerated Environmental Series, Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.

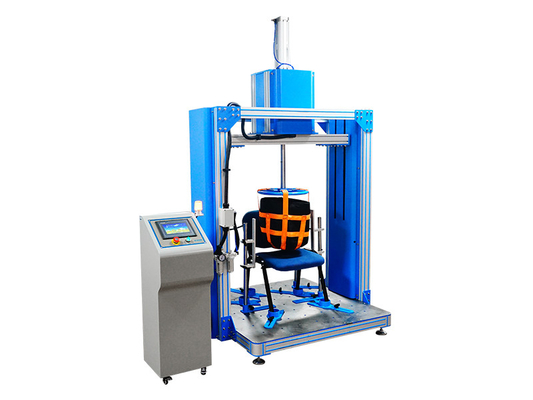

Drop Impact Test Machine , Two Station Furniture Testing Equipment 2

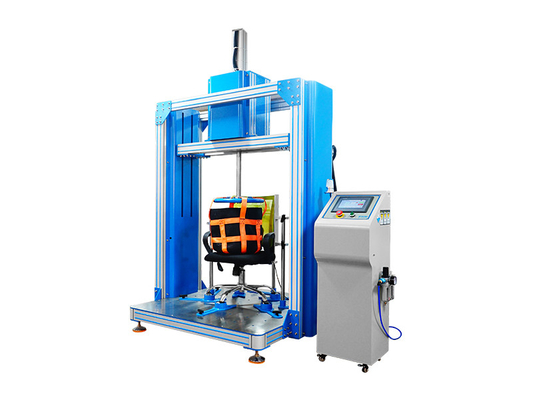

Drop Impact Test Machine , Two Station Furniture Testing Equipment 3

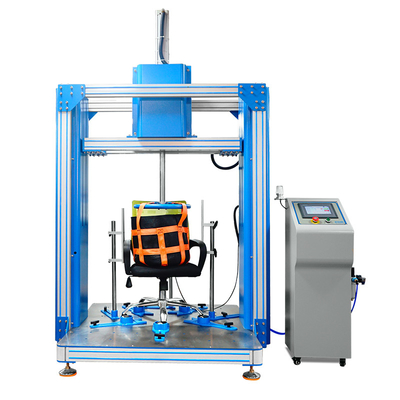

Drop Impact Test Machine , Two Station Furniture Testing Equipment 4
