| Cylinder Stroke: | 300mm | Display Mode: | Touch Screen |
|---|---|---|---|
| Seat Height: | 200mm～600mm(adjustable) | Drop Weight: | 57kg,102kg,136kg |
| Impact Speed: | 10～30times/min | Drop Height: | 30mm,36mm,152mm |
| High Light: | Chair Drop Furniture Testing Machines,Touch Screen Furniture Testing Machines,Chair Cyclic Impact Test Equipment |
||

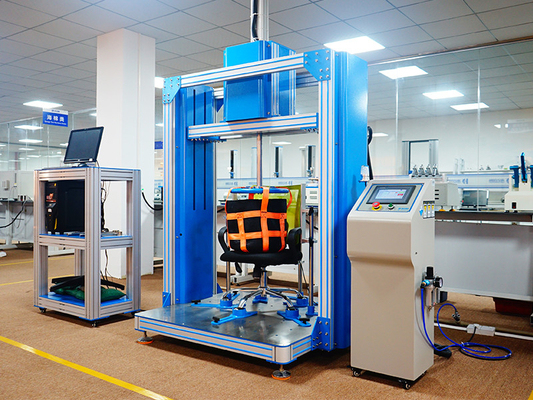

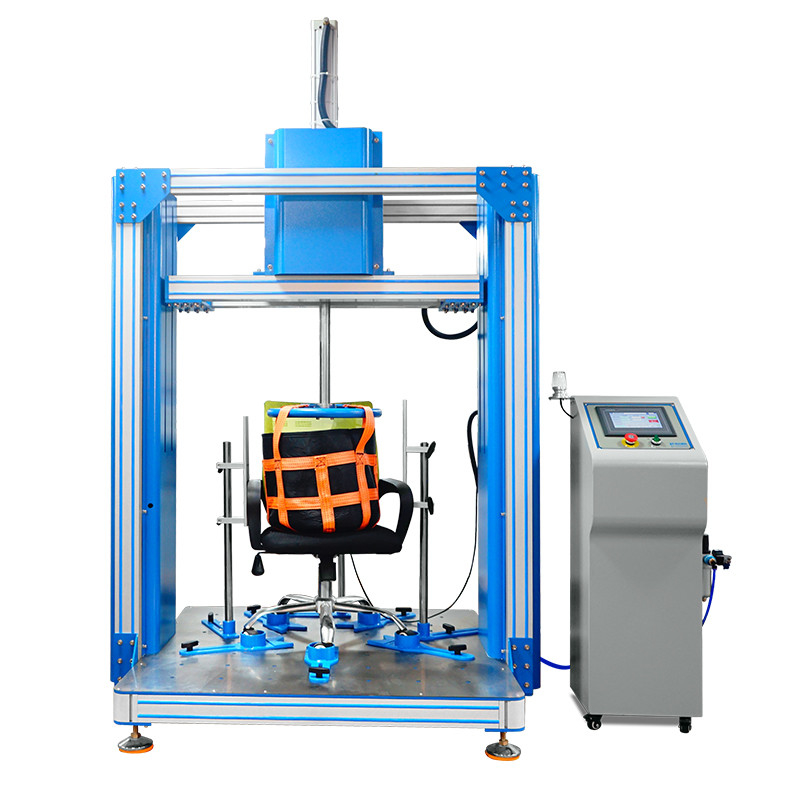

Chair Drop Furniture Testing Machines , Cyclic Impact Test Equipment
EQUIPMENT DESCRIPTION
Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
DESIGN STANDARD: Bifma x5.1-2017
TECHNICAL PARAMETERS
| Control Mode | PLC Control |
| Display Mode | Touch Screen |
| Cylinder Stroke | 300mm |
| Impact Speed | 10～30times/min |
| Seat Height | 200mm～600mm(adjustable) |
| Drop Weight | 57kg,102kg,136kg |
| Drop Height | 30mm,36mm,152mm |
| Test Degree | 1～999999 |
| Weight | About 500kg |
| Power Supply | 1∮ AC 220V |
| Rate of Work | About 200W |
| Data Output | USB |
| Maximum external dimension | 1200mm×1450mm×2600mm(L*W*H) |
| Main testing item | one impact and impact durability test |
Configuration:
| Configuration | Name | Details |
|
Standard Configuration |
Documents | Operation Manual*1 piece |
| Factory Inspection Report*1 piece | ||
| Operation Video in USB flash disk with machine*1 piece | ||
| Power line | 1 piece | |
| Air Pipe | 1 piece | |
| Weight Bag | woven bag*1 piece | |
| Small steel ball bag | 10kg *12 pieces +5kg*3 pieces + 1kg *2 pieces | |

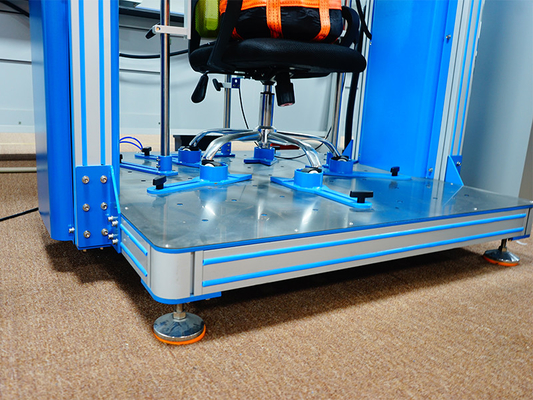

| Testing Clamp | Chair Fixing Seat for chair foot *5 pieces; | |
| Sample damage fixture*1 piece; | ||
| Limit clamp*2 piece | ||
| Fixed height block | 152mm*1piece ；36mm*1 piece；30mm*1 piece | |
|
Optional Configuration |
air compressor | Suggest ≥ 3P |
| Plug | 1 piece(Per customer country’s standard) |
USAGE
Chair Seating Cyclic Impact Tester is a two station testing equipment.
According to test Standard: BIFMA X5.1-2002, Test No. 8,11
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.
