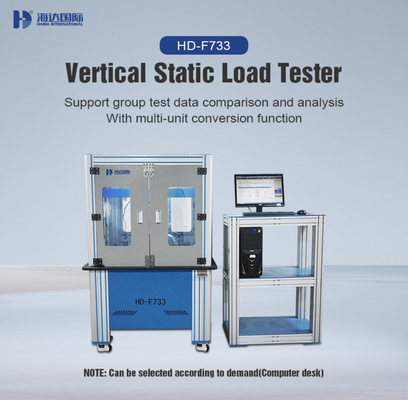

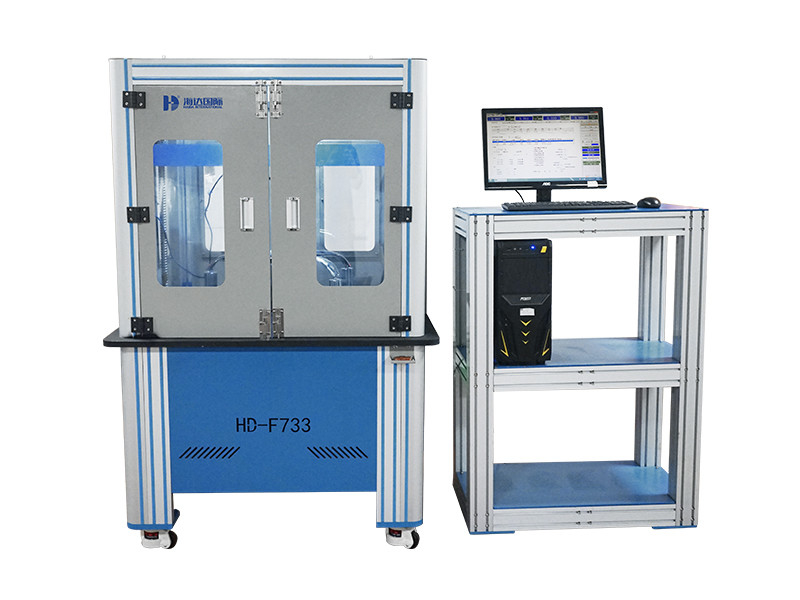

3000N Chair Base Vertical Force Testing Machine For Vertical Pressure Test

Brand Name:	HAIDA
Model Number:	HD-F733
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE

Power:

850W

Test Speed:

0.1-120 Times /min

Machine Size:

LxWxH=1100x1100x1650 Mm

Maximum Test Sample Size:

1000mm*1000mm

Test Force:

1～30,000N

Force Transducer:

3000N

Supply Ability:

300 Sets per Month Haida

Highlight:

Chair Base Vertical Force Testing Machine

3000N Vertical Force Testing Machine

Product Description

Chair Base Vertical Force Testing Machine For Vertical Pressure Test

Specification
Packaging Dimensions: (W*D*H)1150*1150*1950mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight:300kg
HS Code: 9024800000

Standards: BIFMAX5.1 2017

Standard Features

Item	Description
Force transducer	30,000N
Test force	1～30,000N
Display mode	Computer monitor
Control mode	Computer software control
Power supply	AC /220V,10A,50HZ
Power	850W
Test speed	0.1-120 times /min
Machine size	LxWxH=1100x1100x1650 mm
Maximum test sample size	1000mm*1000mm

3000N Chair Base Vertical Force Testing Machine For Vertical Pressure Test 1

Applications
Step 1: Install the chair foot base on the chair foot pad and put it on the testing machine base (as shown above);
Step 2: Put the base pressure block on the five-star base of the chair (as shown above);
Step 3: Set the loading force to 11120N and return after holding pressure for one minute. Load 11120N again within one minute and return after holding pressure for one minute.
Step 4: After the test is completed, it will stop automatically, and the two-color green light will flash to remind the test is completed

Configuration

Configuration	Name	Details
Items	Documents	Certificate of quality1 piece; Accessories list1 piece; Operation Manual *1piece;
	Power line	1∮ AC 220V
	DB9 communication line	1 piece
	Test fixture	(Support column + pressure head + tray)*1
	USB cable	1 piece
	USB flash disk	1G capacity *1 piece
	Sensor	30KN*1 piece
	Computer with Software	1 set (optional)

About Haida

Founded in 2004, QTS Group is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
