Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -55℃~ ＋ 125℃ | Temperature Sensor: | PT100 Platinum Resistance |
|---|---|---|---|
| Operation Method: | Program Mode, Fixed Value Mode | Status Display: | Temperature Setting And Real-time Display |
| High Light: | TEC Rapid Thermal Shock Testing Machine,Rapid Cold Thermal Shock Testing Machine |
||

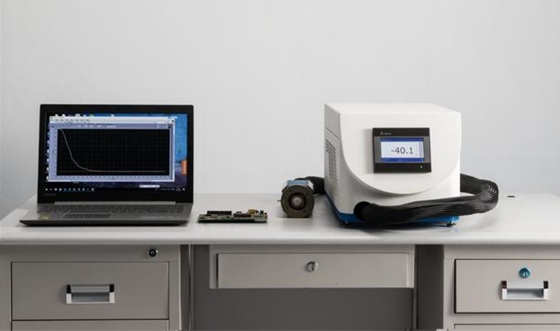

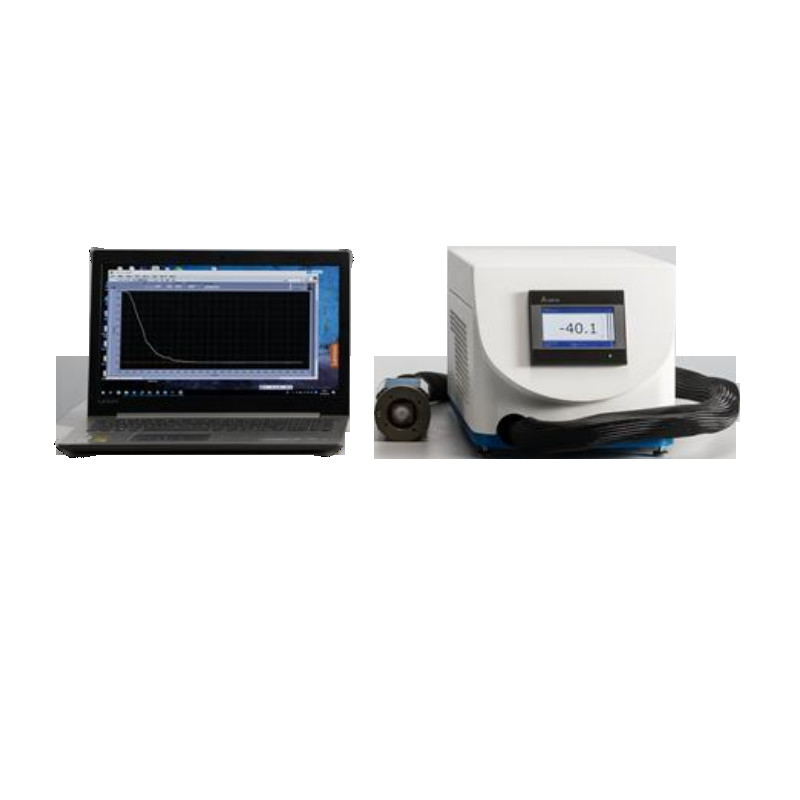

TEC Rapid Thermal Shock Testing Machine Rapid Cold And Heat Impact Tester
Major Parameter
| Equipment name | TEC Rapid thermal shock testing machine | |
| Equipment model | HD-55F | |
| Performance Specifications | ||
| Temperature range | -55℃~ ＋ 125℃ | |
| Control accuracy | ± 1.0℃ | |
| Temperature setting and display accuracy |
0.1 ℃ |
|
|
DUT automatic pressure control |
2kg-18kg/Force +/-1 kg |
|
| Built-in pressure control | 6-8kg/cm | |
| Outer box size | 280*265*520mm(W*H*D) | |
| DUT size | From 2x2mm to 40x40mm | |
| speed of temperature change | 25°C to -40°C in < 2 min, | |
| 25°C to 125°C in < 1 min | ||
| temperature control | The gas temperature and the sample temperature can be selected and controlled. | |
| Temperature Sensor | PT100 platinum resistance | |
| Operation interface | Touch screen industrial grade system, more stable | |
| Operation method | program mode, fixed value mode | |
| Status Display | Temperature setting and real-time display | |
| data storage | Data files can be stored in USB | |
| Data chart | with time/temperature graph |
| Data record | Data can be recorded to file or transferred to computer |
| Communication Interface | RS232/RS485/TCP, GPIB can be added |
| Calibration method | Manual/Software Calibration |
| Supply gas dryness | Temperature 20~25, dew point below -70 gas or N2 |
| supply gas | Pressure: <0.5cfm (1.5-3.0 PSI) |
| power supply | AC220V 50HZ /10A |
|
Supported packages |
BGA •FCBGA •LGA •QFN •QFP •CSP •WLCSP • Bare Die •and more |
| Running power | About 300W |
| installation method | indoor installation |
| Ambient working temperature | -10~+45℃ |
| RH | 15~90%R |
| Altitude | less than 2000 meters |
|
use environment |
No severe vibration and shock and no more than 5% vertical inclination place; |
| AC supply voltage | Single-phase AC220V±10%, frequency 50HZ. |
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
