Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Power: | Electronic | Item: | Specification |
| Internal Dimension (W*D*H): | 600*800*850mm | Temperature Fluctuation: | ±0.5℃ |
| Temperature Uniformity: | 2℃ | Humidity Range: | 20~98%RH (Refer Image Below) |
| Humidity Fluctuation: | ±2.5%RH | Humidity Uniformity: | 3%RH |
| Cooling Speed: | 1℃/min In Average (without Loading) | Temperature Sensor: | PT-100 Dry And Wet Bulb Sensor |
| Port: | Shenzhen | ||
| High Light: | Environmental Vibration Test System,Air Cooled Vibration Test System |
||

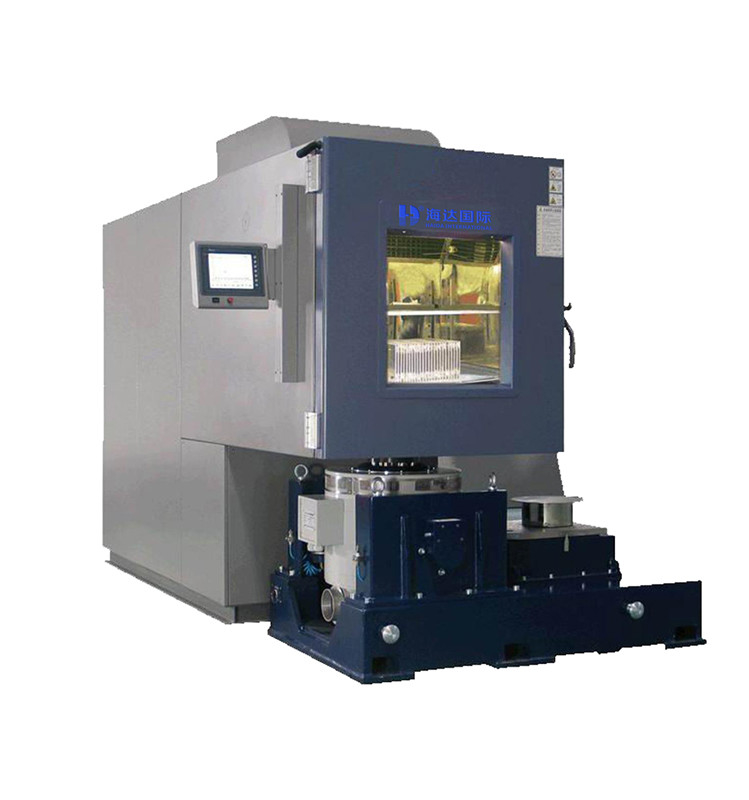

Environmental Vibration Test System For Climate Test
Images for reference only
PRODUCT DESCRIPTION
The test system adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature&humidity and vibration environment condition. It’s widely used to do environmental endurance test, reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on.
TEMPERATURE & HUMIDITY CHAMBER SPECIFICATIONS
|
Item |
Specification |
|
Internal dimension (W*D*H) |
600*800*850mm |
|
Temperature range |
+10~+100℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
2℃ |
|
Humidity range |
20~98%RH (Refer Image below) |
|
Humidity fluctuation |
±2.5%RH |
|
Humidity uniformity |
3%RH |
|
Cooling speed |
1℃/min in average (without loading) |
|
Heating speed |
3℃/min in average (without loading) |
|
Internal chamber material |
SUS#304 stainless steel, mirror finished |
|
External chamber material |
Stainless steel with paint spray |
|
Cooling method |
Air-cooled |
|
Controller |
Programmable control temperature and humidity Can set different parameter for cyclic test |
|
Insulation material |
50mm high density rigid Polyurethane foam |
|
Heater |
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
|
Compressor |
France Tecumseh compressor |
|
Lighting |
Heat resistance |
|
Temperature sensor |
PT-100 dry and wet bulb sensor |
|
Observation window |
Tempered glass |
|
Testing hole |
Diameter 50mm, for cable routing |
|
Sample tray |
SUS#304 stainless steel, 2pcs |
|
Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |

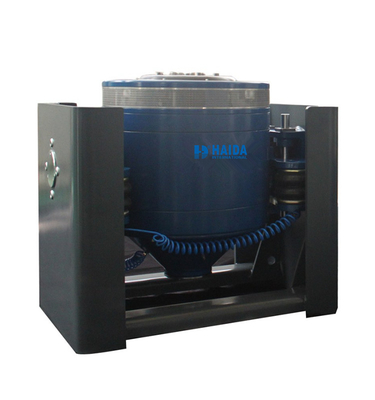

VIBRATION TEST SYSTEM

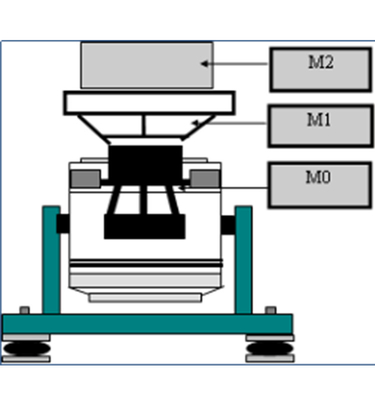

Basic Structure of Vibration Test System

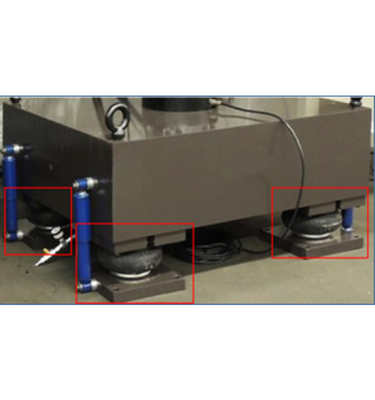

The vibration tester equipped with airbag shock isolation
devices on the machine bottom without the need of
additional foundation, perfect reproduction of vibrational
wave and reduction in vibration transmittance.
STANDARD SPECIFICATIONS
|
Item |
Description |
|
Sine Force |
5.88KN |
|
Shock Force |
11.76KN |
|
Frequency Range |
5~3000 Hz |
|
Displacement |
51 mm |
|
Max. Velocity |
2m/s |
|
Max. Acceleration |
981 m/s² (without loading) |
|
Armature Diameter |
200 mm |
|
Permitted Load Torque |
>300 N•m |
|
Effective Armature Mass |
6 kg |
|
Max. Load Capacity |
100kg |
|
Magnetic Leakage |
≤1 mT |
|
Axial Vibration Isolation Frequency |
<3 Hz |
|
Load attachment |
16 stainless steel M8 inserts |
|
Dimension(L*W*H) |
850*665*760mm |
|
Approx. weight |
990kg |

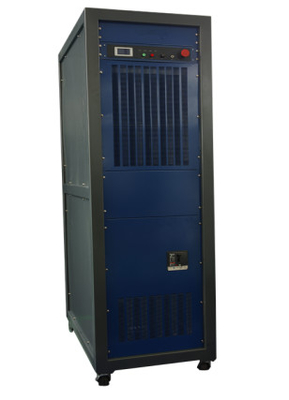

POWER AMPLIFIER
STANDARD SPECIFICATIONS
|
Item |
Description |
|
Max. Output Power |
8kVA |
|
Frequency Response |
>65 dB |
|
Output Voltage |
120 Vrms |
|
Conversion Efficiency |
>95% |
|
Dimension(L*W*H) |
800*600*1558mm |
|
Approx. Weight |
320kg |
|
Safety Protection Device |
Over voltage protection Over current protection Over-temperature protection Over displaced protection Cooling system failure protection Excitation power failure protection |
