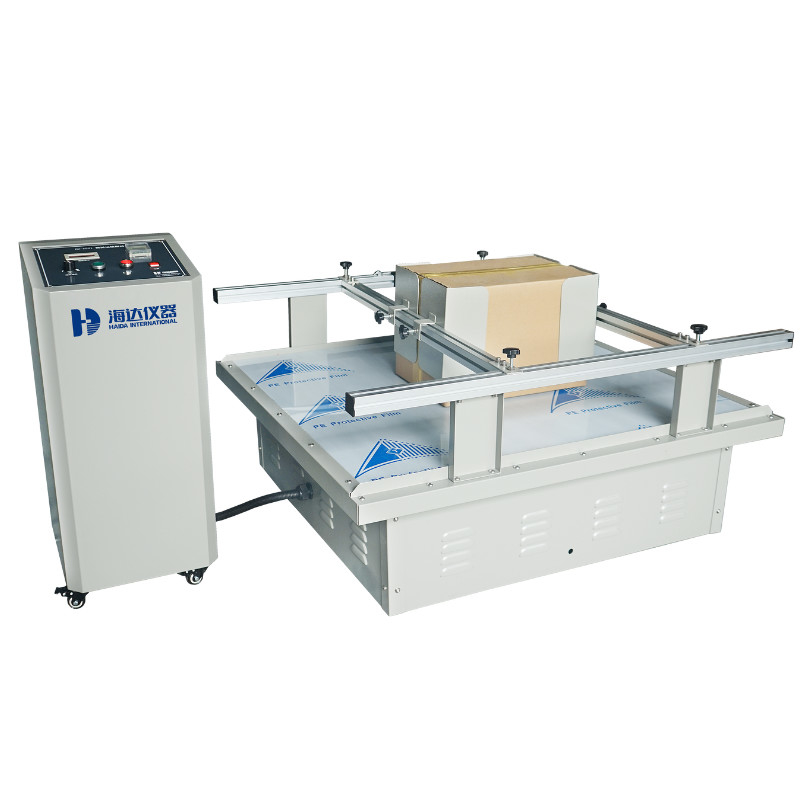

ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine

Brand Name:	Haida
Model Number:	HD-A521
Price:	$1,500.00 - $3,500.00/sets
Packaging Details:	Each set is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

1 Year

Customized Support:

OEM, ODM

Power:

Electronic

Standards:

ASTM, ISTA

Guarantee:

1 Year

Test Space:

100*120mm

Maximum Test Load:

100kg

Simulation Speed:

25-40km/h

Work Table Size:

1000x 1200mm

Outside Dimension:

1255x 1070x 660mm

Weight:

125kg

Port:

Shenzhen , HongKong , Guangzhou

Supply Ability:

50 Set/Sets per Month

Highlight:

40km/h Vibration Test Equipment

ASTM Vibration Test Equipment

Product Description

Vibration Table Simulator Machine Vibration Test Equipment

Product Description

Vibration Test Machine

The carton vibration table is based on American and European transportation standards, and is improved and manufactured with reference to similar equipment in the United States. The eccentric shaft is used to generate an elliptical motion trajectory during rotation to simulate the vibration and collision of goods during the transportation of cars or ships. Fix the test platform on the eccentric bearing. When the eccentric bearing rotates, the entire plane of the test platform will move up and down in an elliptical shape. Adjusting the rotating speed of the eccentric shaft is equivalent to adjusting the speed of a car or ship.

Specification

Max. Test Load	100 Kg
Frequency Range	60-300 rpm
Amplitude Range	25.4 mm (1 inch)
Vibration Mode	Roundtrip
Simulation Speed	25~40 km/h
Woke Table Size	1000×1200 mm
Outside Dimension (L×W×H)	1255×1070×660 mm
Power Capacity	1 HP
Weight	125 Kg
Environmental Conditions	Temperature: 5~40°c; Related Humidity: <85%
Speed Mode	DC converter or AC Frequency Control
Power	220V, 50 Hz

Why We Need Vibration Testing?
The purpose of the vibration test is to do a series of controllable vibration simulations in the experiment to test whether the
product can withstand the test of transportation or vibration environment factors during the life cycle, and to determine the
required standards for product design and function. According to statistics, a 3% increase in design standards will increase
recycling by 20% and reduce unnecessary expenditures by 18%. Vibration simulation has different methods for different purposes,
such as resonance search, resonance dwell, cycle scanning, random vibration and stress screening.

Features of carton vibration test table:

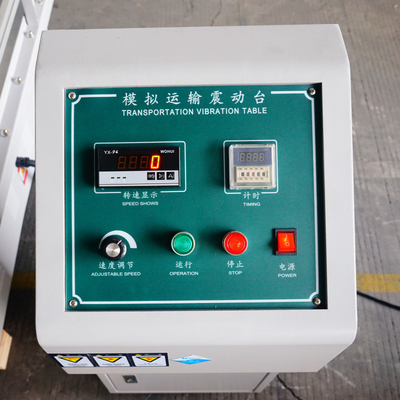

1.Digital meter displays vibration frequency
2.Synchronous noise suppression belt drive, extremely low noise

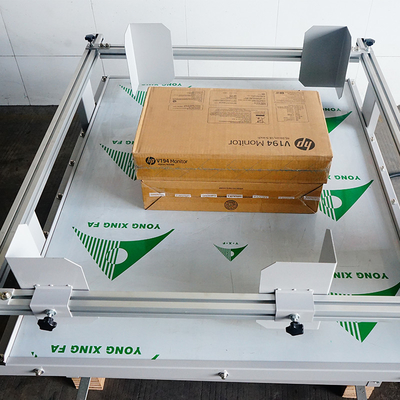

3.The sample clamping adopts the guide rail type, which is convenient and safe to operate
4.The base of the machine is made of heavy-duty channel steel with damping rubber pads, which is easy to install and run smoothly
without installing anchor screws.
5.DC motor speed regulation, stable operation, strong load capacity
6.Rotary vibration (commonly known as horse racing type), in line with European and American transportation standards.

Paper&Package Tester

Company Profile

FAQ

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from
our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can
provide video-con

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click " CONTACT SUPPLIER "
Thanks for your time and attention!
