| Control And Display: | PLC+LCD | Sensor: | Load Cell |
|---|---|---|---|
| Capacity: | 200KG | Weight: | 160KG |
| Test Sample Size: | 380*380*100mm | Motor: | Servo Motor |
| Driver: | Electric Actuator | Power: | Single Phase, 220V, 50Hz |
| High Light: | Foam Compression Recovery Time Tester,LCD Display Controllable Recovery Time Tester |
||

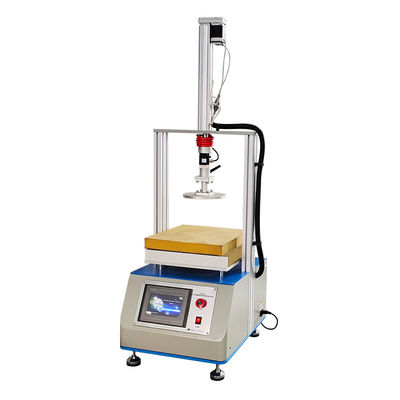

LCD Display Controllable Foam Compression Recover Time Tester Servo Motor Drive
GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 700*920*1200MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 160kg
HS Code: 9024800000
APPLICATIONS&TEST PURPOSE:
This machine is used to determine the recovery time of the slow recovery (viscoelastic) foams.
DESIGN STANDARD : ASTM D 3574-2008
TEST PROCEDURES:
1. Prepare and condition the test specimen according to the geometries and guidance described in the test standard for IFD testing.
2. Place the specimen onto the perforated base compression platen. Lower the circular top platen onto the top of the specimen to apply a small preload and identify specimen thickness.
3. Indent the specimen to 75% of its original thickness at the speed referenced in the test standard.
4. After a specified dwell time, remove the circular top platen quickly to the specified deflection (close to original height), and record how much time it takes for foam to contact the top platen.
STANDARD FEATURES:
| Control and display | PLC+LCD |
| Sensor | Load cell |
| Capacity | 200KG |
| Unit | N |
| Up plate | Diameter 200mm, bottom fillet R1mm |
| Low plate | 400×400mm, holes diameter 6mm, space 20mm |
| Test Sample Size | 380*380*100mm |
| Test speed | 1000 + 100 mm/min |
| Motor | Servo motor |
| Driver | Electric actuator |
| Power | Single phase, 220V, 50Hz |
| Weight | 160KG |
