PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection

Brand Name:	Haida
Model Number:	HD-F743
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE，ISO

Controller:

PLC Programmable Controller, LCD Color Touch Screen, Easy To Operate

Test Times:

0～999,999, Can Set The Test Cyclic Freely

Cyclic And Holding Time:

0～99.9S

Air Source:

7kg/ Cm2 (provided By Customer)

Max Specimen Size:

(L×W×H)2200×1200×1200mm

Controller Mode:

PLC; LCD Color Touch Screen, Easy To Operate

Supply Ability:

30 Sets per Month Haida

Highlight:

PLC Furniture Testing Equipment

Three Seat Sofa Furniture Testing Equipment

Multi Location Furniture Testing Equipment

Product Description

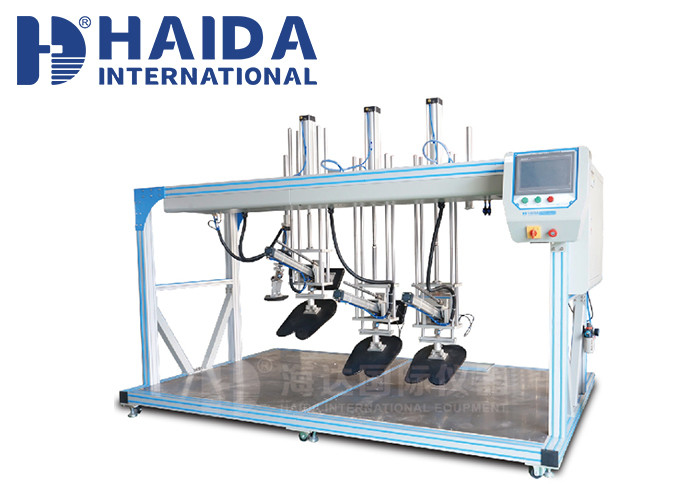

Furniture Testing Equipment Three-Seat Sofa Durability Tester Multi-Location Load Detection

APPLICATIONS& TEST PURPOSE:

This tester simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest,and these three tests can work together or independently, also the test position is adjustable.

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 0

GENERL SPECIFICATIONS

Machine Dimensions: (W x D x H) 3280*1960*2310mm

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 524kg

HS Code:9024800000

OPERATION INTERFACE:

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 1

DESIGN STANDARD: ANSI/BIFMA X5.4-2012

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 2

Haida four-seat sofa durability tester is shown in Vietnam Nitori factory

(Customized model as per Nitori’s acutal testing requirement)

STANDARD FEATURES

Test Items	Seat Static Load Test Back Static Load Test Arm Downwards Static Load Test Seat Fatigue Test Back Fatigue Test
Test Modules	Three Modules for Seating Three Modules for Back One Module for Arm
Standard Testing Force	Seat load: 750 N; Backrest load: 400N; Arm:300N
Controller	PLC programmable controller, LCD color Touch screen, easy to operate
Test Times	0～999,999, can set the test cyclic freely
Cyclic and Holding Time	0～99.9S
Air Source	7kg/ cm2 (provided by customer)
Max Specimen Size	(L×W×H)2200×1200×1200mm
Controller mode	PLC; LCD color Touch screen, easy to operate

TEST PICTURES:

Seat Static Load Test

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 3

2) Back Static Load Test

3)Arm Downwards Static Load Test

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 5

4) Seat Fatigue Test

5) Back Fatigue Test

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 7

Test Procedure:

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 8

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 9

Test Procedure:

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 10

Test Image:

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 11

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 12

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 13

customer letter

PLC Furniture Testing Equipment Three Seat Sofa Durability Tester Multi Location Load Detection 15

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
