Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test

Brand Name:	Haida
Model Number:	HD-F734
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE，ISO

Test Cycles:

0～999,999 (adjustable)

Test Speed:

0～30 Time /min

Back Load:

5～100kg

Compressed Air Requirement:

6. 6 Kg/cm2

Holding And Cyclic Time:

7. 0～99S

Control Model:

PLC, Programmable Controller

Supply Ability:

30 Sets per Month Haida

Highlight:

Back Fatigue Office Chair Tilting Tester

30 Time / min Office Chair Tilting Tester

Product Description

Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test

Application:

The machine is designed to test back by specified load block with setting force and speed, to assess chair back durability.

Test Standard:BIFMA X5.1 2017

Test Images:

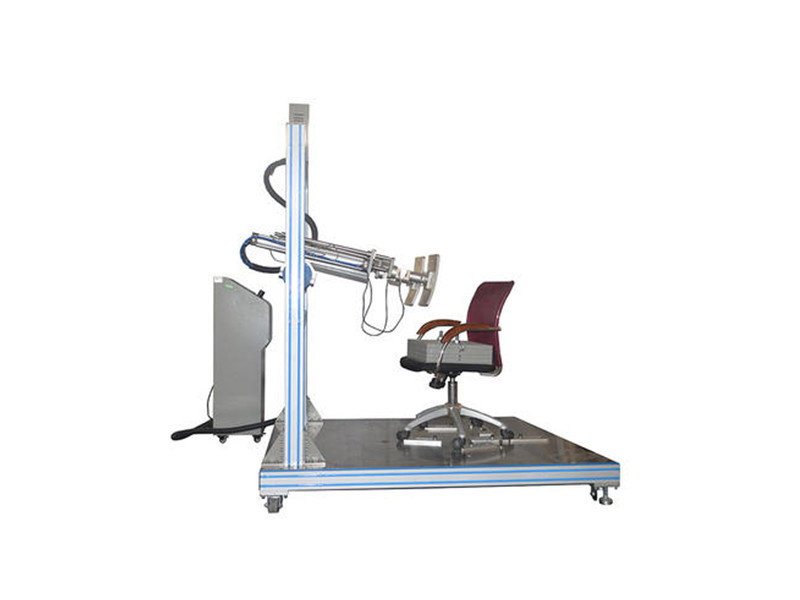

Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test 0

Refers to Bifma x5.1 2017 clause 9 Tilt Mechanism Test - Cyclic

Test Procedure:

1)The unit shall be cycled for 300,000 cycles at a rate between 10 and 30 cycles per minute.

2)The tilt mechanism and/or cycling device should be checked and readjusted as needed to maintain the original conditions specified.

Standard Features:

1. Force actuator height is adjustable to suit different kinds of chair (500-1200 mm)

2. Test cycles: 0～999,999 (adjustable)

3. Test speed: 0～30 time /min

4. Force of the actuator is adjustable

5. Back load: 5～100kg

6. Compressed air requirement: 6 kg/cm2

7. Holding and cyclic time: 0～99S

8. Control model: PLC, Programmable controller

9. Power: one phase, AC 220V, 50Hz.

About Us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

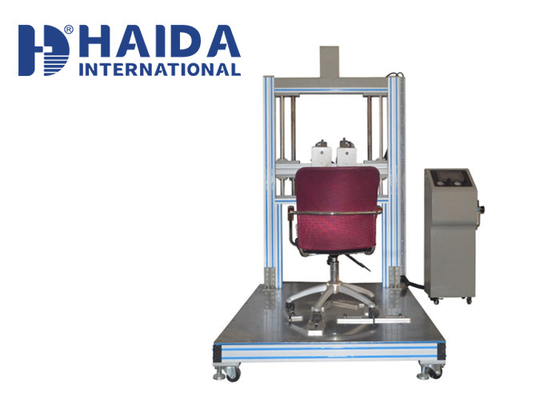

Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test 1
