Product Details:
Payment & Shipping Terms:
|
| Test Platform: | 1800x1000mm | The Max: | Load Force : 150KG |
|---|---|---|---|
| The Stroke For Loading Weight: | 350mm | Compress Air: | 4.6kg/cm2 |
| Highlight: | Office Chair Forefoot Stability Tester,150KG Load Force Forefoot Stability Tester |
||

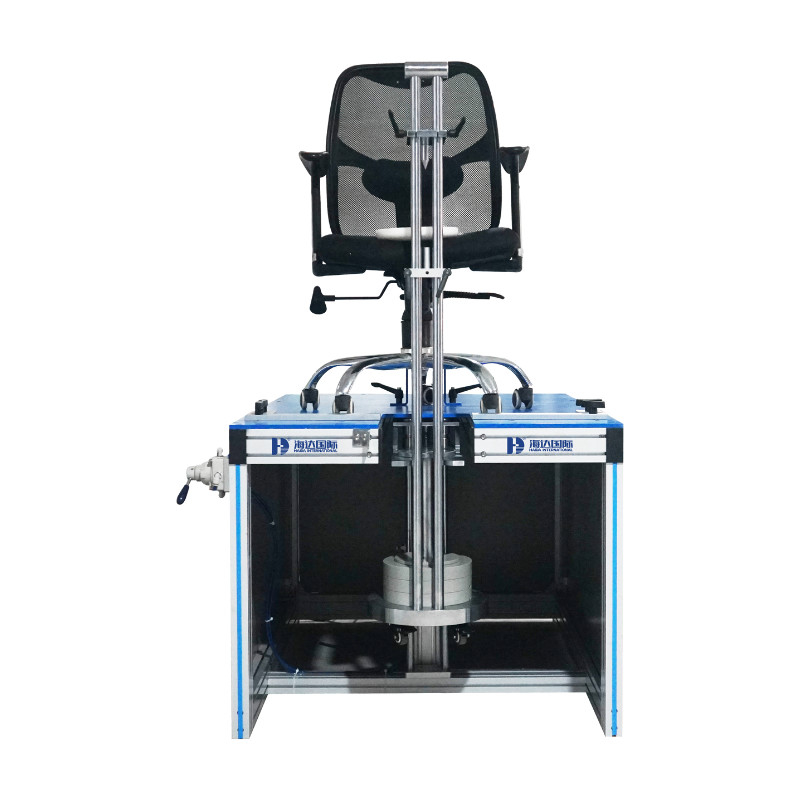

Office Chair Forefoot Stability Tester Weight Load Test Furniture Test
PRODUCTS DESCRIPTION
The Chair Stability Tester is used to perform the forwards overbalancing test.
DESIGN STANDARD: BIFMA 5.1
STANDARD FEATURES:
Test Platform: 1800x1000mm
The Max. Load force : 150KG
The stroke for loading weight: 350mm
Compress air : 6kg/cm2
TEST PROCEDURES:
a) Apply a vertical load of 61 kg (135 lb.), through the front-stability loading disk (See Figure 11e), so that the center if the disk portion is 60 mm (2.4 in.) from the front center edge of the load-bearing surface of the seat. Note: It is recommended that the fixture/method shown in Appendix D be used to assist in locating the 60 mm (2.4 in.)
loading dimension. If using the fixture, the vertical height of the fixture should allow
contact at the approximate center of the sloped face of the fixture with the tangent (touch
point) on the front of the seat.
b) Apply a horizontal force of 20 N (4.5 lbf.) at the same height that the vertical force is applied (at the point of contact of the loading fixture). The force shall be coincident (in-line) with the side-to-side centerline of the seat.
TEST IMAGES:
