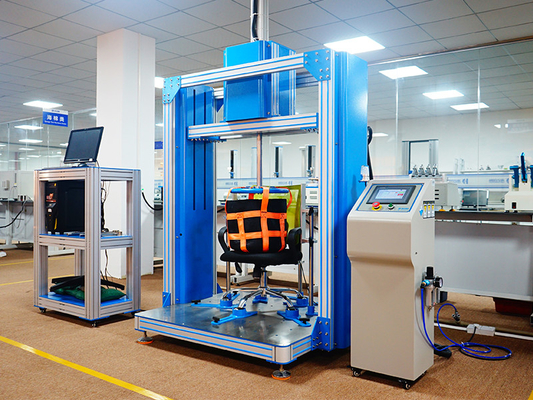

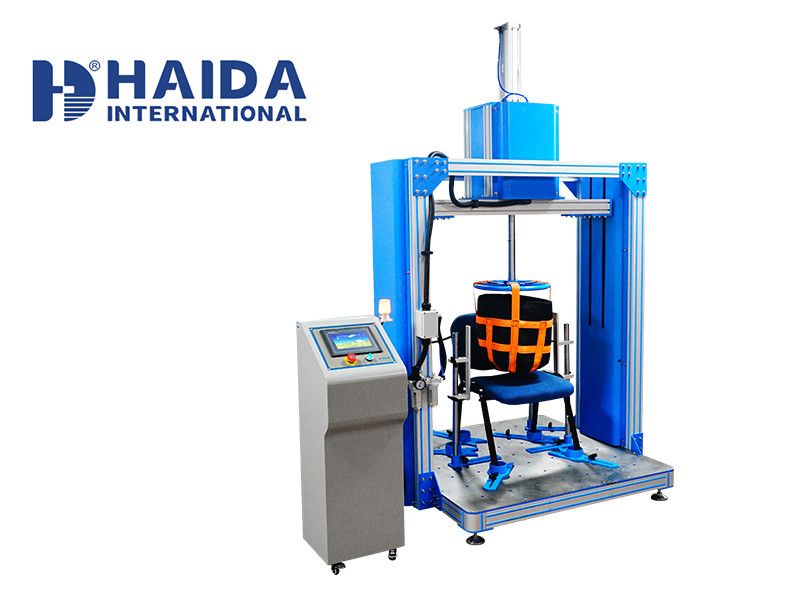

Impact Chair Drop Testing Machine , Furniture Test Equipment Manufacturer
Equipment Description
It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat.
Standard Features
| Adjustable Drop Height | 10mm to 250mm |
| Largest chair dimensions width | 1000mm |
| Test speed | 10～30 times/min |
| Times setting | 0 ~ 999,999 |
| Control mode | PLC and LCD touch screen |
| Chair seating height | 200-600mm ( adjustable) |
| Air source | 6kg/cm2 |
| Accessories |
total test bag weight 136kg ( can be divided to 102kg, 57kg) |
Reference Doc: BIFMA X5.1 2017 clause 7 Drop Test Dynamic
Application Standards:BIFMA X5.1 2017
Reference Doc: BIFMA X5.1 2017 clause 10 Seating durability test-cycles ( 10.3 Impact test)
Test Procedures:
A test bag weighing 57 kg (125 lb.) shall be raised 36 mm (1.4 in.) above the uncompressed seat and released for 100,000 at 10-30 cycles/min.
