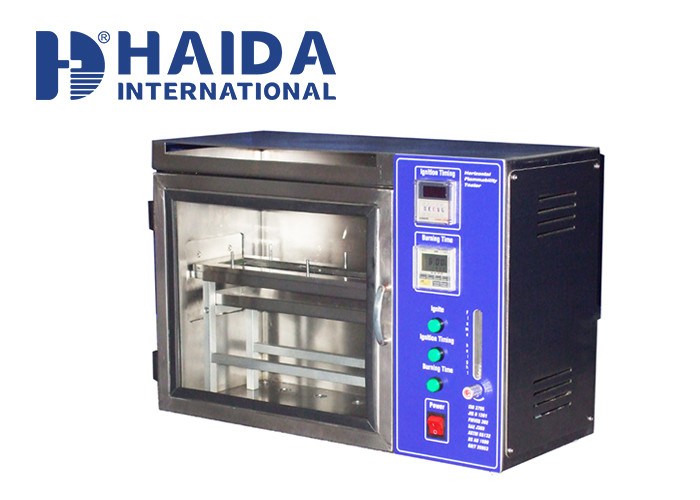

Stainless Steel Frame Automotive Interior Flammability Test Machine

Large Image : Stainless Steel Frame Automotive Interior Flammability Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	CE，ISO
Model Number:	HD-F758

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Specimen Ignition Time:	15s	Specimen Undersurface To The Burning Bottom Plate Distance:	178mm
The Distance Front Specimen Holder To Inner Surface Of The Combustion Chamber:	22mm	The Distance Outside Specimen Holder To Inner Surface Of The Combustion Chamber:	50mm
Nozzle Inner Diameter:	Ø9.5mm	Air Adjustment Hole:	Flame Time 0 ~ 99min 99S(can Be Adjusted)
Highlight:	Automotive Interior Flammability Test Machine , Stainless Steel Frame Flammability Test Machine , 15s Flammability Testing Machine

stainless steel frame Automotive interior Flammability test machine

APPLICATIONS & TEST PURPOSE:

The machine is used to test foam relative combustion rate and flame resistance. It also applys to automobile interior materials flame retardant properties in the failure and non-normal state, it is with full stainless steel of whole frame.

DESIGN STANDARD: ISO 3795

Stainless Steel Frame Automotive Interior Flammability Test Machine 0

STANDARD FEATURES:

Specimen ignition Time	15s
Specimen undersurface to the burning bottom plate distance	178mm
The distance front specimen holder to inner surface of the combustion chamber	22mm
The distance outside specimen holder to inner surface of the combustion chamber	50mm
Nozzle inner diameter	Ø9.5mm
Air adjustment hole	flame time 0 ~ 99min 99S(can be adjusted)
Flame height	20mm to 100mm as per standard
Time setting range	0 ~ 9999.9s
Burning Angle	90 ° (0 °)
Thermometer	150 ℃, the resolution: 1 ℃
Resolution	0.1s
Combustion gas	high purity liquid gas(provided by customer)
Configurations	Control box, burning box body, burning lamp, solenoid valve, high pressure igniter, thermometer, signal control line, specimen holder
