OEM Electric Spring Fatigue Furniture Testing Machine For Cornell Mattress

Brand Name:	HAIDA
Model Number:	HD-F763
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Weight Of Hexagonal Wood Barrel:

109kg,

Maximum Size Of Mattress:

2.3m×2.5m (optional)

Machine Size(L×W×H):

2500mm×2800mm×2200mm

Power:

380V, 1.5kw

Cylinder Weight:

140kg

Brand:

Haida

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

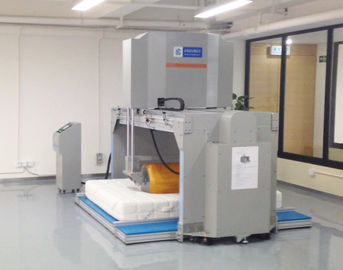

OEM Electric Spring Fatigue Furniture Testing Machine For Cornell Mattress

Specifications

1. Cornell Mattress Furniture Spring Fatigue Testing Machine is used to simulate human motion to assess th e durability of the mattress.
2. OEM

1. The usage

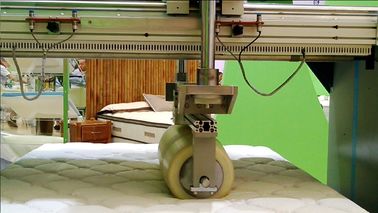

OEM Cornell Mattress Furniture Spring Fatigue Testing Machine Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.

2. The main components:

1. Motor: Taiwan's Teco Motor with reducer of Italy

2. Speed adjustment: Taiwan's "Ed Force" drive

3. Guide bearing: Import from Japan.

4. Rack: aluminum body and steel

5. Control elements: Imported.

3. Function and features:

1) Weight of hexagonal wood barrel	109kg,
2) According to different mattress to adjust the rolling stroke(adjust the limit switch position)
3) low coefficient of friction guide, ensure full drum weight on the mattress.
4) Maximum size of mattress	2.3m×2.5m (optional)
5) The text display provides easy control and setting.
6) Machine size(L×W×H)	2500mm×2800mm×2200mm
7) Power	380V, 1.5kw
Cylinder weight	140kg

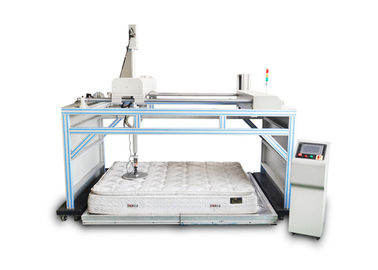

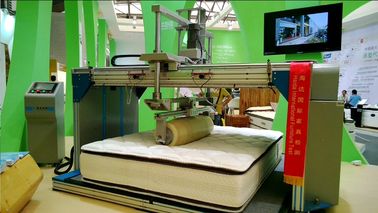

Different Models of the machine

OEM Electric Spring Fatigue Furniture Testing Machine For Cornell Mattress 0
