PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory

Large Image : PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	CE，ISO
Model Number:	HD-F50D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Sample Size:	1.38030050mm	Roller Loading:	2.130N±2N (adjustable)
Counter:	0-999,999 Cycles	Roller Size:	Diameter 76±1.3mm, Length: 457mm
Test Speed:	6.15±1.5 Cycles/ Min	Power:	1 Phase, AC 220V, 50±10% Hz
Highlight:	Paint Type Foam Roller Shear Machine , PLC Foam Roller Shear Machine , Laboratory Foam Roller Shear Machine

PLC touch screen controller Paint type Foam Roller Shear Machine for laboratory

PRODUCTS DESCRIPTION:

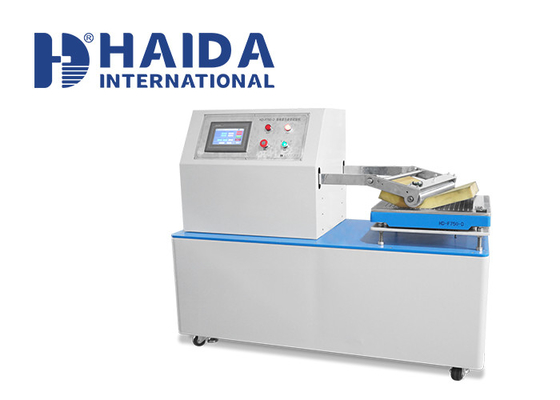

The Roller Shear Machine is used to determine the resistance to compression fatigue of flexible cellular polyurethane using dynamic roller compression test. The Roller Shear Machine fatigues a specimen dynamically with a constant force deflecting the material both vertically and laterally. It has been used for many years in the foam industry to determine the percentage loss in thickness.

PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory 0

TEST STANDARD: ASTM D3574 • ASTM D1564 • AS 2282.12 Clause 3.3, Method B • JIS K 6400

DESIGN PICTURES SHOWED ON TESTING STANDARD

PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory 1

SPECIFICATION

Sample size: 380*300*50mm
Roller loading : 130N±2N (adjustable)
Counter: 0-999,999 cycles
Test cycles: Procedure A: 8000 cycles; Procedure B: 20000 cycles
Roller size: Diameter 76±1.3mm, Length: 457mm
Test speed: 15±1.5 cycles/ min
Rolling stroke: 300±10 mm
Base Platen: 500mm x 500mm
Control method: PLC, touch screen controller, can set force and test cycles
Power: 1 phase, AC 220V, 50±10% Hz

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory 3

PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory 4

customer letter

PLC Touch Screen Controller Paint Type Foam Roller Shear Machine For Laboratory 6

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
