Machine Size: | 1700x1450x2100mm(L*W*H) | Weight Of Seat: | 225 Lb Or Specified |
---|---|---|---|
Air Requirement: | Compressed Air 6 Kg/cm2 | Stroke: | 0~18 In |
Force Angle: | 0~90° | Test Speed: | 0~30 Time /min |
Highlight: | furniture testing equipment,fatigue testing equipment |

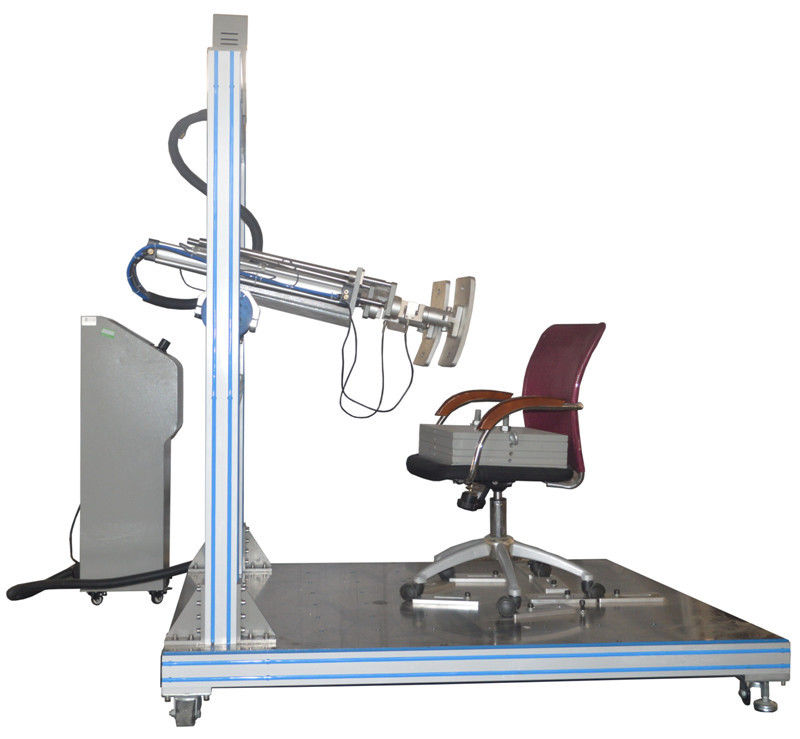

Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
MAIN FUNCTION:
The machine is designed to test back by specified load block with setting force and speed, to assess chair back durability.
GENERAL SPECIFICATION:
Packaging Dimensions: (W*D*H) 1700*1450*2200mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: About 500kg
HS Code: 9024800000
TEST STANDARD:BIFMA X5.1 2017
STANDARD FEATURES:
Force actuator height | 500-1200 mm(adjustable) |
Test cycle | 0~999,999 (adjustable) |
Test speed | 0~30 time /min |
Back load | 5~100kg |
Air requirement | Compressed air 6 kg/cm2 |
Holding and cyclic time | 0~99S |
Control model | PLC, Programmable controller |
Power | One phase, AC 220V, 50Hz. |
Display | Touch screen |
Machine size | 1700x1450x2100mm(L*W*H) |
APPLICATION:
Test Times in 1 ~ 999999 times can be set arbitrarily, automatically stop after reaching the determination number;
Touch screen +PLC control, test force, test times and other data can be set;
Travel limit protection, leakage protection design, to ensure safe operation;
With power off memory and power off protection alarm and other functions, the next power use, you can view the last test data or continue to test.
CONFIGURATION:
Configuration | Name | Details |
| Documents | Operation Manual*1 piece; |
Power line | 1 piece | |
Plug | 1 piece(Per your local plug standard) | |
USB cable | 1 piece | |
USB flash disk | 1G capacity *1 piece | |
Load Sensor | 200kg Capacity *1 piece | |
Chair back loading pad | 1 set | |
Chair seat fixing fixture | 1 set | |
Chair leg fixing block | 1 set |
