Electric Rubber Testing Machine , RCA Scroll Abrasion Testing Equipement
  • name
  • name
  • name
  • name
  • name

Electric Rubber Testing Machine , RCA Scroll Abrasion Testing Equipement

Brand Name: HAIDA
Model Number: HD
MOQ: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Power:
Electronic
Power Supply:
AC220V 50Hz 3A Or Specified By User
Weight:
25kg
Dimension:
530(L)*490(D)* 960(H)mm
Supply Ability:
300 Sets per Month Haida
Highlight:

rubber tensile testing machine

,

rubber testing equipments

Product Description

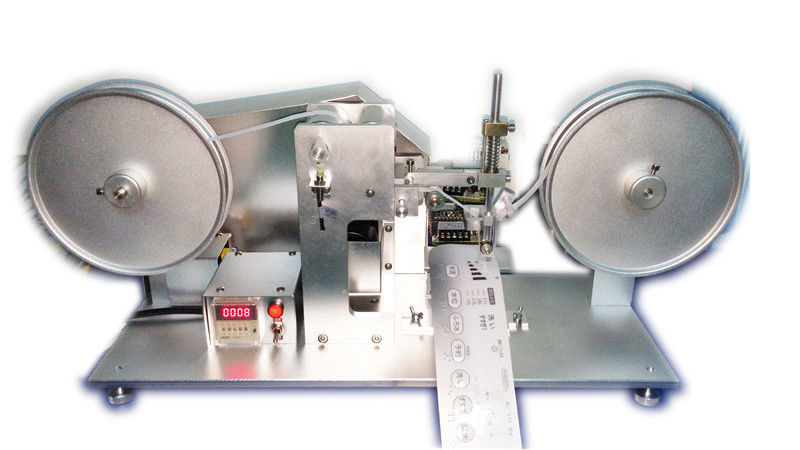

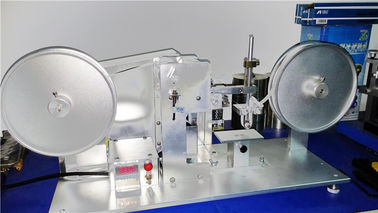

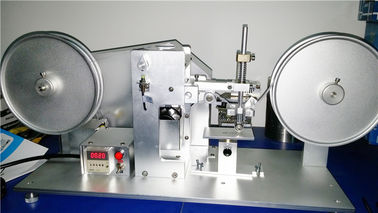

Electric Rubber Testing Machine , RCA Scroll Abrasion Testing Equipement





RCA Scroll Abrasion Testing Equipement is special used for friction testing of Mobile phone’ press print,Mobile phone shell, Plastic casing coating with the function of digital counter and easy operation.

Main Configuration



1, two traps .
2, one digital counter
3, 1Original paper tape 1116 paper.(general for print test is 11/16 width, 40 volume per case, weight 41 pounds, 1.4 cubic inches, around 1800 circle in each volume.)
4, one magnifying glass
5,one set of hexagon



Item Specification
Test load options 55g, 175g, 275g
Test cycle setting 1~999,999times (cycle)
Speed 1min / 2670mm 1cyc / 157mm
Rotation rate 16rpm
Abrasion Paper Size 11/16"
Dimension 530(L)*490(D)* 960(H)mm
Weight 25kg
Power AC220V 50Hz 3A or specified by user



Electric Rubber Testing Machine , RCA Scroll Abrasion Testing Equipement 0Electric Rubber Testing Machine , RCA Scroll Abrasion Testing Equipement 1
