Second Generation High Precision
ROHS Lab Test Equipment X-Ray Optical Analyzer Instrument
Product Name:
ROHS 2.0 Test Equipment
Description:
On June 4, 2015, the European Union issued Directive (EU) in its Official Gazette 2015/863 to amend Annex II of RoHS2.0 (2011/65/EU), and formally revised the four phthalates (DEHP, BBP, DBP, DIBP) are listed in Annex II of RoHS 2.0. From December 31, 2016, EU member states must translate this directive into national legislation and implement it. The limit for the four new phthalates is 0.1% (1000 ppm). The difference from the four previously proposed substances for priority evaluation is that hexabromocyclododecane (HBCDD) has been deleted and DIBP has been added as a controlled substance.
In addition to meeting the ortho-benzene testing requirements of RoHS2.0, TOTM (trioctyl trimellitate), DMF (dimethylformamide), benzene series (benzene, toluene, xylene), and 17 kinds of ink VOCs can be expanded , Organic solvent residues, polymer materials, volatile organic compounds in materials and other testing items, one machine is multi-purpose.

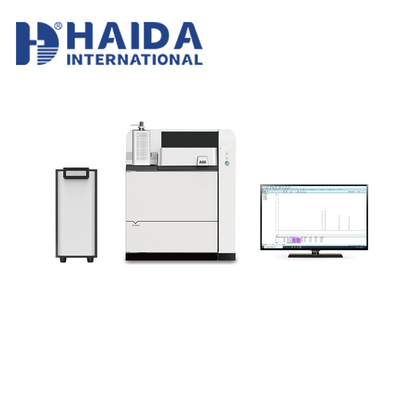

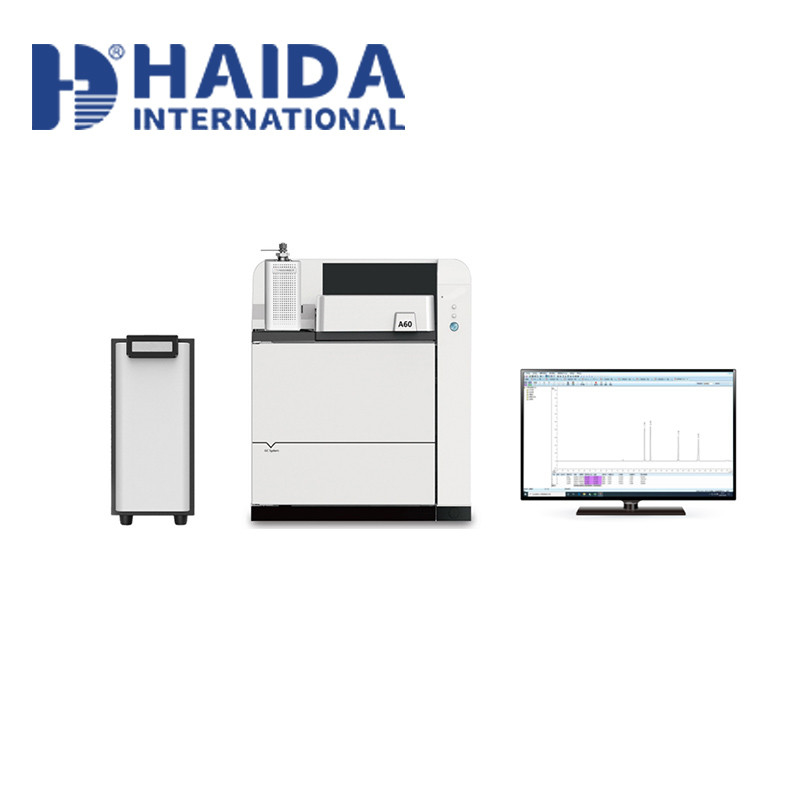

Product photo
Testing Principle:
The thermal cracking method is to place the solid sample in a thermal cracking device and heat it to 350 degrees in a nitrogen-filled environment. The phthalate ester undergoes a physical reaction and changes from solid to gas. Then, we calculated the gaseous state by gas chromatography. The content of phthalates.
Application:
> Large Household Appliances (such as : Air conditioner, TV, Refrigerator, etc.)
> Small Household Appliances (Such as : Kettles, Sweeping Robots, Electric Fans, etc.)
> IT & Communication Products (Such as: Computers, 4/5G Base Stations, Antennas, Communication Equipment, etc.);
> Consumer Electronic & Electrical Products (Sush as: Game Consoles, Mobile Phones, Cameras, Consumer Drones, etc.);
> Lighting Products (Such as: Civil Lamps, Street Lamps, Car Lamps, etc.);
> Electronic & Electrical Tools (Such as: Power Tools, Motors, Servo Motors, etc.);
> Toys, Leisure & Sports Products (Such as: Children's Toys, Bicycles, Children's Walkers, etc.);
> Vending Machines, Medical Equipment, etc.;
(from the Internet)
Technical Parameters:
Sample Testing Speed |
18-20 minuts per sample |
Consumables Parts |
Cracking Tube & Nitrogen |
Sample |
Avaible for both Solid and Liquid sample |
Min.Testing Content |
50ppm |
Sample Pre-treatment |
No Need |
Environmental Problem |
Environmental friendly, does not produce waste water |
Temperature Range: |
RT~450℃ |
Heating Rage: |
>500℃/min |
Cracking Time |
0.01~99.99min |
Purge Time |
0.01~99.99min |
Purge Flow Range: |
10ml~200ml |
Shunt Flow Range: |
10ml~200ml |
Heating Voltage |
16VDC |
Aging Cleaning Device Temp. Range |
RT~450℃ |
Aging Cleaning Device Time. Range |
1~1200 min |
Testing Graph:
Component name and retention time:
Name |
Abbreviation |
Retention time |
Time window |
Diisobutyl Phthalate |
DIBP |
8.524 |
0.05 |
Dibutyl Phthalate |
DBP |
9.041 |
0.05 |
Butyl Benzyl Phthalate |
BBP |
10.941 |
0.05 |
Dioctyl Phthalate |
DEHP |
11.949 |
0.05 |
