3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments

Name: 3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments
Brand: HAIDA
SKU: HD-CNC3020
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (120 reviews)

Large Image : 3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments

Product Details:

Place of Origin:	China
Brand Name:	HAIDA
Certification:	CE，ISO
Model Number:	HD-CNC3020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after received deposit
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Stroke(mm):	300x200x200	Machine Size(mm):	625x777x1080
Working Table(mm):	460x360	Weight(kg):	280
Bearing Weight(kg):	25	Measurement Accuracy:	XY (3+L/200)um, Z (3+L/200)um
Power:	220V(AC) 50Hz(Can Be Adjusted)	Lighting:	White LED, Brightness Continuously Adjustable
High Light:	3D CNC Video Measuring Machine , Automatic Video Measuring Machine

3D CNC Automatic Operation Image Instrument

Video Measuring Machine Optical Measuring Instruments

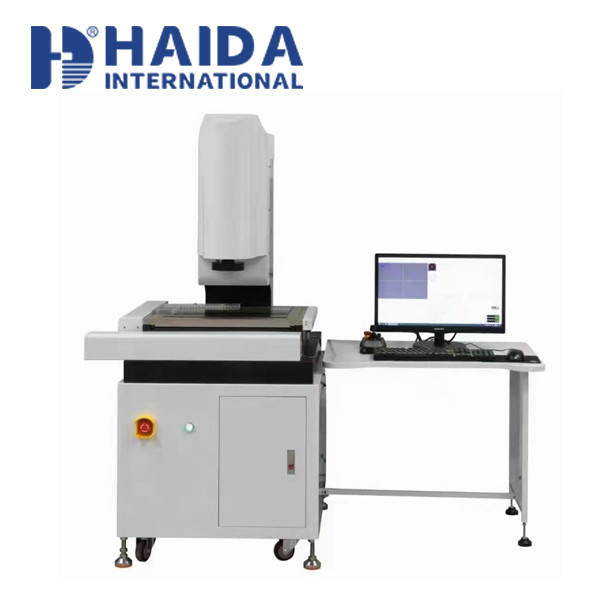

Product display

3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments 0

Measuring screen

3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments 1

TECHNICAL PARAMETERS

Product Name		Video Measuring Machine(Automatic Operation)
Model		HD-CNC3020	HD-CNC4030	HD-CNC040
Stroke(mm)		300x200x200	400x300x200	500x400x200
Machine Size(mm)		625x777x1080	725x877x1180	825x1077x1280
Working Table(mm)		460x360	560x460	660x560
Weight(kg)		280	350	420
Bearing Weight(kg)		25	25	25
Digital measurement system	Measurement accuracy	XY (3+L/200)um, Z (3+L/200)um
	Grating scale resolution	0.0005 μm
Guide rail		China Taiwan Uebank P class
Lighting system	CCD	Camera: Japan Sony color Camera magnification 30-225X CCD Camera magnification 30-225X
	Lens	0.7 ~ 4.5x high definition manual card position
	Lighting	White LED, brightness continuously adjustable
Optical lenses		Manual continuous doubling or automatic continuous doubling (optional)
Working distance		90mm
Control Method		High speed automatic
Working Environmental		Humidity 20℃±5℃ Temperature change ±2℃/ HR Humidity 30-80%
		Vibration < 0.002g below15Hz
Power		220V(AC) 50Hz(Can be adjusted)

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments 2

3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments 3

customer letter

3D CNC Automatic Operation Image Instrument Video Measuring Machine Optical Measuring Instruments 5

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
