3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments

Name: 3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments
Brand: HAIDA
SKU: HD-U2010
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (126 reviews)

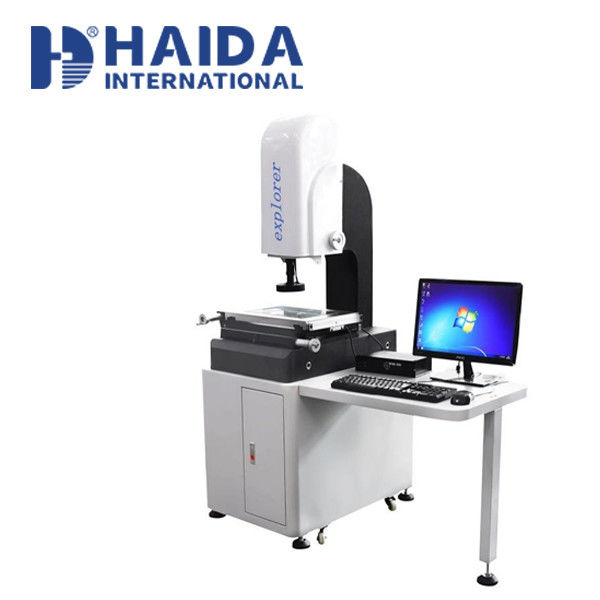

Large Image : 3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments

Product Details:

Place of Origin:	China
Brand Name:	HAIDA
Certification:	CE，ISO
Model Number:	HD-U2010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after received deposit
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Stroke(mm):	1500KG	Machine Sizemm):	525x677x9080
Working Table(mm):	360x260	Weight(kg):	220
Working Distance:	90mm	Measurement Accuracy:	(3+L/200)um
Grating Scale Resolution:	0.0005 μm	Guide Rail:	China Taiwan Uebank P Class
High Light:	Manual Operation Video Measuring Machine , 3D CNC Image Video Measuring Machine

3D CNC Image Instrument Manual Operation Video Measuring Machine

Optics Precision Measuring Instruments

Product display

3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments 0

Measuring screen

3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments 1

TECHNICAL PARAMETERS

	Product Name			Video Measuring Machine(Manual Operation)
	Model			HD-M2010		HD-M3020	HD-M4030	HD-M5040
	Stroke(mm)			200x100x200		300x200x200	400x300x200	500x400x200
	Machine Sizemm)			525x677x9080		625x777x1080	725x877x1180	825x1077x1280
	Working Table(mm)			360x260		460x360	560x460	660x560
	Weight(kg)			220		280	350	420
	Bearing Weight(kg)			25		25	25	25
	Digital measurement system		Measurement accuracy	(3+L/200)um
			Grating scale resolution	0.0005 μm
3D probe system (optional)					UK Renishaw probe set, Probe comes with ¢1//¢2
Lighting system		CCD			Camera: Japan Sony color 1/3"CCD 780TVL camera magnification 30-210X
		Lens			0.7 ~ 4.5x high definition manual card position doubling lens
		Lighting			Surface light source and transmission light source LED cold light source, long life, adjustable brightness (5 ring 8-zone light source program-controlled light source)
Laser positioning					Laser positioning indicator
Machine Size (mm)					500x700x1100
Weight(kg)					150
Power					220V(AC)50Hz (Can be adjusted)

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments 2

3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments 3

customer letter

3D CNC Image Instrument Manual Operation Video Measuring Machine Optics Precision Measuring Instruments 5

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
