Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven

Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven
Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven

Large Image :  Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J203
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Power Supply: 1∮, AC220V/ 50Hz
Weight: 850kg
High Light:

fatigue testing equipment

,

strollers testing equipment

Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven



Brief Introduction:

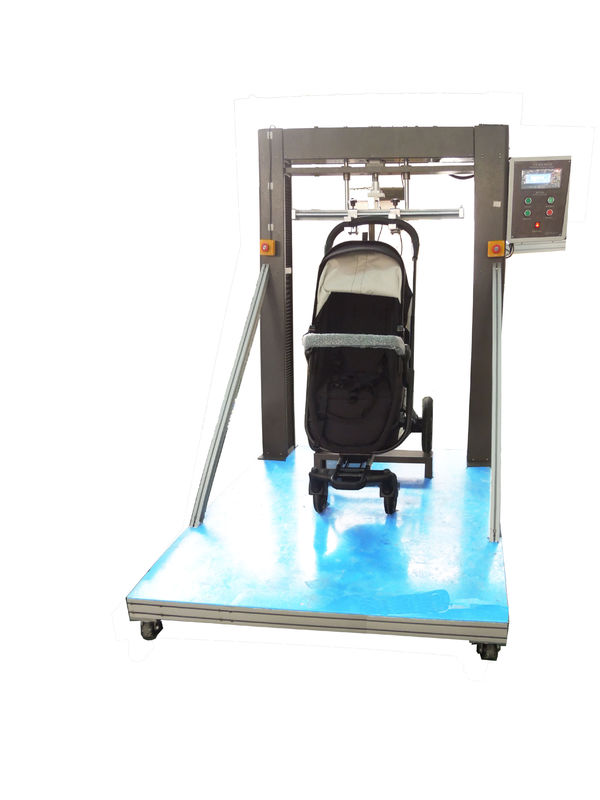

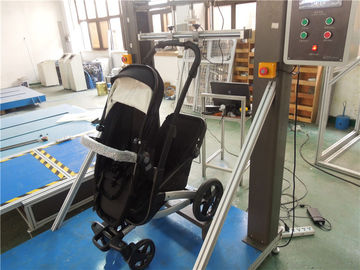

Hand Strollers Lift Down Durable Tester is to test the upholding and pushing durability property of the baby stroller according to ASTM Standards. The test method is: place the baby model in the stroller, leave the trailing wheel 150mm high from the ground when lifting the stroller; leave the front wheel 150mm high from the ground when pushing it, repeat this method continuously for 3000 times at the speed of 15±1 per minute, and check whether the stroller is damaged. The machine will stop automatically when it up to its set-up times, so there is no need to watch it.



Main Parameters:



Power of upholding and pushing driven by pneumatic cylinder, can lift and push 50kg.
The fixed method of the handle mobile or replaceable
Adjustable distance from the handle joint 300mm
Function of upholding and pushing leave the trailing wheel 150mm high from the ground when upholding, leave the front wheel 150mm high from the ground when pushing.
Automatic timer LED, 1~9999 times
Testing space can be customized
Dimension of the machine (L×W×H) 1650x1100x1900mm
Weight 850kg
Power 1∮, AC220V/ 50Hz



The usage:



1.Position the vehicle on a horizontal surface without the parking device applied.



2.Place the test mass as for the stability test. If the vehicle is designed for more than one child use any
number of appropriate test masses, up to one in each place intended to be occupied by a child.



3.Alternately raise and lower the handle(s) by applying a vertical force to the handle so that the rear wheels and front wheels in turn are raised (120 ± 10) mm, measured at the start of the test from the floor and then lowered in a controlled manner without pause (see Figure A).



4.Carry out the test for a total of 10 000 cycles at a frequency of (15 ± 2) cycles/min.



Hand Strollers Testing Machine Durable WITH pneumatic cylinder driven 0
