Product Details:
Payment & Shipping Terms:
|
| Model: | HD-E712 | Studio Size: | ( D×W×H ) 80 ×130 ×100cm |
|---|---|---|---|
| Swing Pipe Diameter: | 0 . 4m , 0 . 6m , 0 . 8m , 1 . 0m ( According To The Size Of The Measured Object To Select The Swing Pipe Size ) | Pendulum Tube Angle: | 60 Degrees ,vertical ± 90 And 180 Degrees |
| Orifice: | The Removable Design , Pinhole 0 . 4mm , Specially Designed Nozzle , Spray Rain Rain Water Pressure 50-150kpa | Testing Temperature: | Room Temperature |
| Specimen Rotative Speed: | 1-3r/min ( Adjustable ) | Power: | 1 Phase , 220V , 5KW |
| Weight: | Approx . 350kg | Specimen’s Holder :: | φ600-800mm , Height : 20cm ( Distance With Bottom Of Chamber |
| High Light: | humidity temperature test chamber,environmental testing machine |
||
Water Resistance Environmental Test Chambers For aerospace industry
1 . Product introduction :
Water-resistance test chamber used to test anti-rain and water-proof performance for products , the products such as steam locomotive lamps , wiper performance , waterproof bands , motorcycle instruments , defense industry , navigation systems , missiles , radar cone top , aerospace industry etc .
2 . Classify

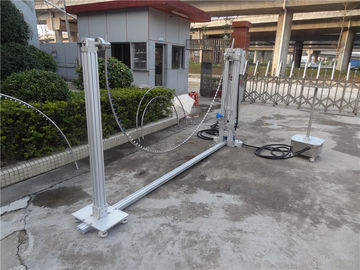

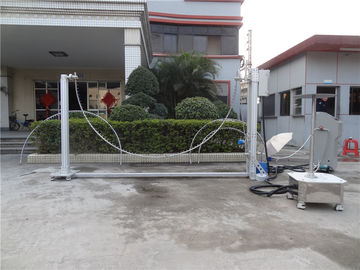

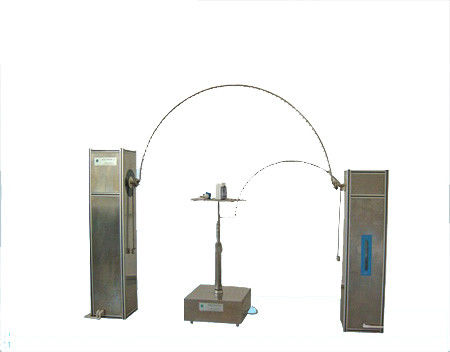

1 . Swing pipe specification:R800mm,R1000mm Total 2 2 roots(Can matching the R600mm,R1200mm,R1400mm,R1600mm swing pipe according the practical conditions)；
2 . Swing pipe:stainless steel,Swing pipe inner diameter:Φ15mm；
3 . Water orifice:￠0 . 4MM,Two hole spacing:50mm；
4 . Stainless steel water orifice , for convenience detach replacement . Embedded set-piece , convenient adjustment water spray Angle；
5 . Gush water mouth Angle:1200(IPX3),1800(IPX4)Use stainless steel article file manual adjustment；
6 . . Swing pipe angle:1200(IPX3),1800,Approximate 3600 manual adjustment
3 . Applicable industries:
Applied to plastics , rubber , paint , coatings , printing ink , paper , pharmaceuticals , food , cosmetics , textiles , auto parts , packaging materials , building materials , electricity and the electrical products ; it provide an important testing data for scientific research , product development and quality control
4 . Standard configuration :
Specimen’s holder : φ600-800mm , height : 20cm ( distance with bottom of chamber
Material : SUS#304stainless steel , swing pipe shelf is aluminium alloy sections . PLC ( programmable logic controller ) + touch screen , wing pip’s device
Electrical machine : “SANYO DENK” ( Japan ) servomotor , the angle of swing pipe is precision .
Turntable electrical machine : “SIG MA” ( Taiwan ) with high torque , low-noise& rotate speed stability
Control system : “MLTSUBLSHI” ( Japan ) PLC ( programmable logic controller )
CONTROLLER : Mitsubishi ( Japan ) programmable controller
Screen : “WELNVLEW” ( Taiwan ) touch screen , provide the visual operation interface
Booster water pump : “CNP” booster pump
It has flow-meter , hydraulic gage , the precision is 0 . 2
5 . Parameters :
| model | HD-E712 |
| Studio size | ( D×W×H ) 80 ×130 ×100cm |
| Swing pipe diameter | 0 . 4m , 0 . 6m , 0 . 8m , 1 . 0m ( according to the size of the measured object to select the swing pipe size ) |
| Pendulum tube angle | 60 degrees ,vertical ± 90 and 180 degrees |
| Orifice | The removable design , pinhole 0 . 4mm , specially designed nozzle , spray rain rain water pressure 50-150kpa |
| Testing temperature | Room temperature |
| Specimen rotative speed | 1-3r/min ( Adjustable ) |
| Power | 1 phase , 220V , 5KW |
| Weight | approx . 350kg |
Our company
Introduction :
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years . HAIDA products are widely used in paper products , packaging , ink printing , adhesive tapes , bags , footwear , leather products , environment , toys , baby products , hardware , electronic products , plastic products , rubber products and other industries , and applicable to all scientific research units , quality inspection institutions and academic fields .
