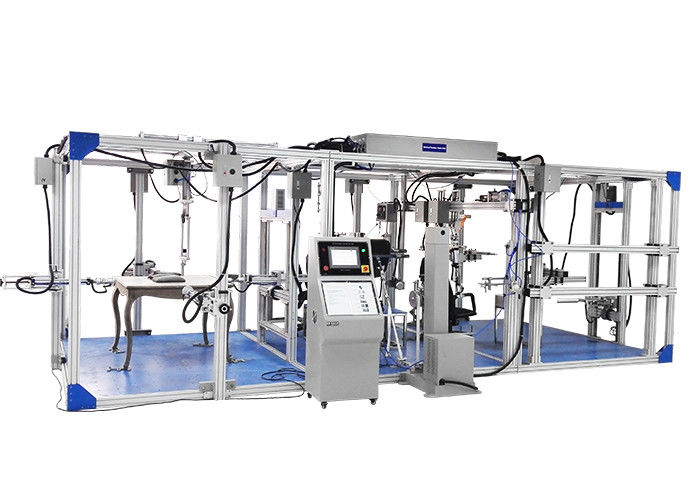

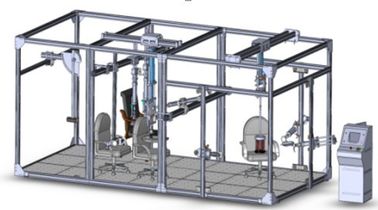

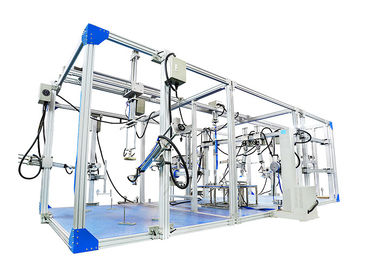

Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738

Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738
Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738 Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738 Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738 Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738 Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738

Large Image :  Electronic En1728 GB1728 Comprehensive Furniture Testing Machines HD-F738

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F738
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Swing Amplitude: 300 ~ 500mm Calculator: 0 ~ 999 , 999 Times ( Adjustable )
Weights: 10KG ( Of 15 ) Maximum Counterweight Weight: 150KG
Dimensions ( Approx . ) ( L * W * H ): 1650 * 1300 * 2150mm Power 3 ∮: AC380V , 50Hz
High Light:

furniture testing equipment

,

impact testing machine

En1728 GB1728 Comprehensive Furniture Testing Machines , Electronic



1. Purpose

Furniture Testing Machines is simulated in everyday conditions , inspection rocking chair bearing durability . The test will be a certain shape , quality of load modules , placed on the seat in the rear seat back repeatedly push and pull action until after a certain number of test bearing conditions , this test can always conducive to improved product mix , eliminating potential quality problems , improve product durability and reliability .



2. The principle

Rocking chair with a seat surface shaped back position , the weight of the horizontal load of the module to load in the form of the predetermined frequency repetitive load movement .



3. The main technical parameters

Swing amplitude 300 ~ 500mm
Calculator 0 ~ 999 , 999 times ( adjustable
Weights 10KG ( of 15 )
Maximum counterweight weight 150KG
Dimensions ( approx . ) ( L * W * H ) 1650 * 1300 * 2150mm
Power 3 ∮ AC380V , 50Hz



En1728 , GB1728 , Bifma × 5 . 5

Chair back strength durability test

Chair leg strength test - forward / lateral loading

Pedals ( ring ) static load test - Vertical

Pedals ( ring ) endurance test

Handrails durability test equipment



1 , the chair seat surface load capacity 5~200kg .
2 , the chair back loading capacity 5~100kg
3 , 2 sets of pneumatic actuators can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test , the two groups of horizontally mounted brake adjustment range for a minimum of 20mm , up to 250mm , maximum thrust is 60kg . brake is on the left and right sides can work independently or simultaneously .
4 , the handrail height adjustment range 550mm ~ 950mm
5 , adjustable thrust , pressure holding time adjustable
6 , the horizontal handrail
7 , the maximum size of specimen width 1000mm
8 , test speed 10 ~ 30 /min
Testing machine bottom drill with a plurality of rows of screw holes , install different accessories and fixed test conditions and convenient
10 , each group of electric actuator is equipped with quick joint , convenientreplacement of different loading block and clamp
11 , the controller of PLC and color touch screen , operation interface is simple and reasonable , the graphical representation is more convenient to use , anyoperator
12 , the machine is equipped with five sets of pneumatic brake , respectively , a set of vertical device , 4 groups of level device , each independent adjustable speed and thrust . The trip is 500mm
Before and after the brake 13 , vertical device can adjust the position , such asclean from 100 mm to 900 mm
Four sets of brake 14 , level device , can be up and down a position adjustmentand move around , flexibly with requirement of different test position
15 , the maximum tension value 150kg
16 , the maximum value of thrust ( level ) 50kg
17 , the maximum pressure value ( vertical ) 150kg
18 , the desktop impact impact head weight 25kg
19 , the backrest and armrest impact angle can be adjusted
20 , can be added with a computer , recording the stress , displacement variation .
