Chair Vertical Pressure Furniture Testing Machines with Destructive Testing

Brand Name:	HAIDA
Model Number:	HD-F733
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE

Force Transducer:

30,000N

Display Mode:

Computer Monitor

Power:

850W

Power Supply:

AC /220V,10A,50HZ

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

fatigue testing equipment

Product Description

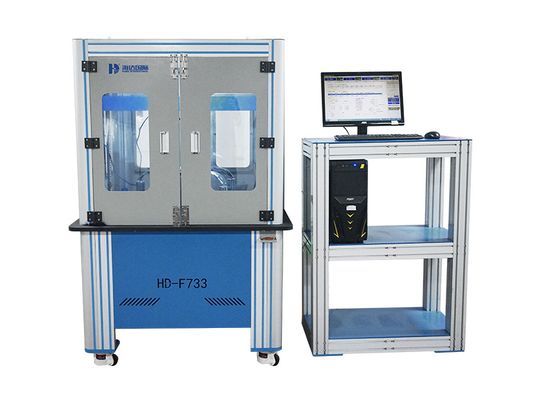

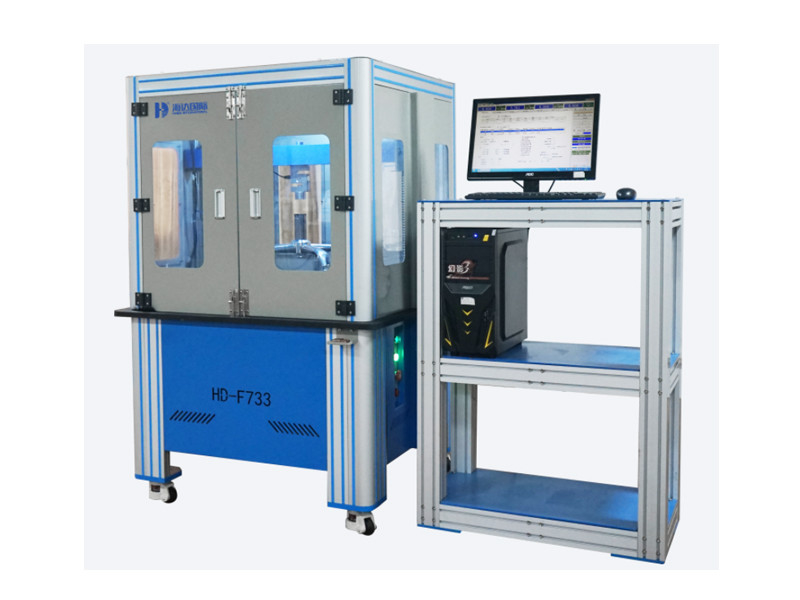

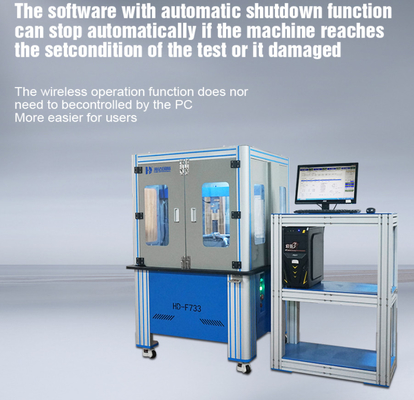

Chair Vertical Pressure Furniture Testing Machines with Destructive Testing

Main Function :

Chair Base Tester is used for the vertical pressure testing , destructive testing and fatigue testing of the office chair Ipomoea base ( Star Base ) , repeated pressure loading in setting force and test cycle as the fatigue test . All holding pressure time and cycle number of tests can be adjusted .

Computer Operation :

With “Windows” work platform , all parameters set by dialog , easy to operate ;
Software language all in English ;
Edit the test reports by yourself , all test parameters in main interface ; Can choose time and elongation , elongation and force and others curve ;

Chair Vertical Pressure Furniture Testing Machines with Destructive Testing 0

Specifications

1. With variety unit , metric system can switch ;

2. With automatic back and calibration function ; with magnification function to reach suitable graph ;

3. Test speed can settable by customer ;

4. With define test method , all test parameters can analysis automatically ;

5. Get the test reports automatic and print out in A4 paper , also with curve or save in Word format .

Design Standard :

BIFMA X5.1-2011 7

Technical Parameter:

Item	Description
Force transducer	30,000N
Test force	1～30,000N
Display mode	Computer monitor
Control mode	Computer software control
Power supply	AC /220V,10A,50HZ
Power	850W
Test speed	0.1-120 times /min
Machine size	LxWxH=1100x1100x1650 mm
Maximum test sample size	1000mm*1000mm
