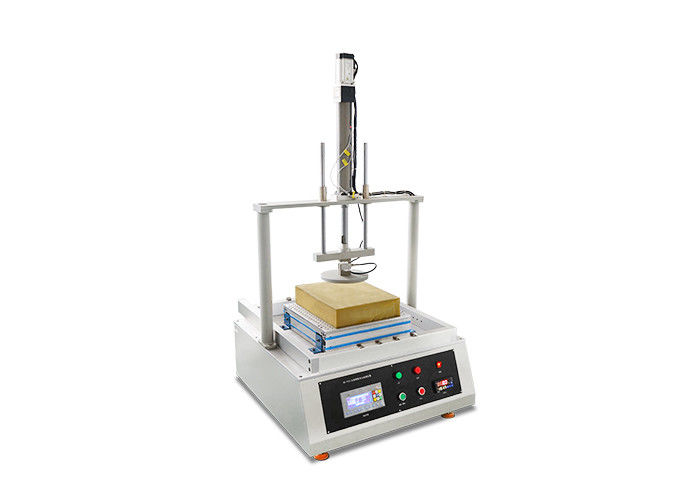

Sofa Cushion Furniture Testing Machines Spring Framework , Spring Pack Tester

Brand Name:	HAIDA
Model Number:	HD-F753
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Maximum Pressure:

100 Kg

Pressure Sensor Precision:

0 . 3% FS

Itineraries Precision:

± 0 . 2 Mm

Power Supply:

220 V , 300 Watt

Model:

HD-F753

Brand:

Haida

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

fatigue testing equipment

Product Description

Sofa Cushion Furniture Testing Machines Spring Framework , Spring Pack Tester

Main function :

Used for testing the sofa and furniture cushion spring framework and spring pack . Durability and endurance .

According to the preset pressure conditions were repeated pressing test , time can be preset , automatic stop to count .

This machine is designed for the sofa spring framework and spring package , test equipment and design sponge , it can satisfy the following three kinds of test requirements

1 ) durability test pressure conditions according to the pre setting for repeated pressing test , time can be preset , automatic stop to count .

2 ) compression work process and pressure detection

According to the preset itineraries under pressure , stops in place . In the spring , pressure meter reads the itineraries , is displayed on the screen for range .

3 ) specific pressure spring compression amount detection plate under pressure to stop after the set pressure , the pressure value compression itineraries lengthdisplay screen .

Technical parameters :

A ) this machine maximum pressure	100 kg, the highest for 150 mm press .
B ) pressure sensor precision	0 . 3% FS
C ) itineraries precision	± 0 . 2 mm
D ) power supply	220 V , 300 Watt
