EN 1725 Furniture Testing Machines with The Load Bearing Capacity

Large Image : EN 1725 Furniture Testing Machines with The Load Bearing Capacity

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-F777

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Control System Mitsubishi:	PLC+ Touch Screen	A Lifting Control:	Taiwan Oubang Drive Motor + Ball Screw
About The Translational Control:	Taiwan Oubang Drive Motor + Ball Screw	Power:	220V
Brand:	Haida	Model:	HD-F777
Highlight:	furniture testing equipment , impact testing machine

EN 1725 Furniture Testing Machines with The Load Bearing Capacity

Introduction :

1 , the mattress rolling test machine for our latest research and testing instrument , is suitable for testing the mattress on the long-term repeatability of the load bearing capacity .

2 , the principle is : Simulation of human sleep constantly tumbling and design , repeated loading test site placed on horizontal cylindrical or hexagonal loading cylinder mattress , to test the mattress to long-term repeatability of the load bearing capacity .

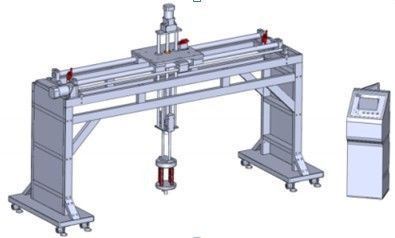

EN 1725 Furniture Testing Machines with The Load Bearing Capacity 0

Design standards : EN 1725

Main technical parameters :

1 , the impact head total mass is 25kg , in which the impact head main body is not even the spring is 17kg
Spring coefficient 2 , impact device for 6 . 9+/-1N/mm at the same time , spring preload pressure to 1040+/-5N
3 , the cylinder will electromagnet according to the needs of the drop height pull high 180mm , the release of the electromagnet to impact head against on the mattress
4 , the equipment in the impact head center equipped with laser positioning device , convenient alignment point of impact on the mattress
5 , the control system Mitsubishi	PLC+ touch screen
6 , a lifting control	Taiwan Oubang drive motor + ball screw
7 , about the translational control	Taiwan Oubang drive motor + ball screw
8 , power	220V

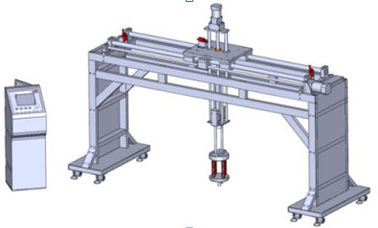

EN 1725 Furniture Testing Machines with The Load Bearing Capacity 1
