Product Details:
Payment & Shipping Terms:
|
| Digital Height Indicator Drop Height: | 3 Inches To 16 Inches (75mm ~ 406mm) | Test Views: | 0 ~ 32000 Times |
|---|---|---|---|
| Maximum Specimen Size: | (L × W × H) 1000 × 1000 × 1200mm | Drop Bag Weight: | 75lb, 200lb |
| Dimensions: | (L × W × H) 1600 × 1300 × 2500mm | Power: | 3 ∮, AC380V, 50HZ, 1HP |
| Highlight: | furniture testing equipment,impact testing machine |
||

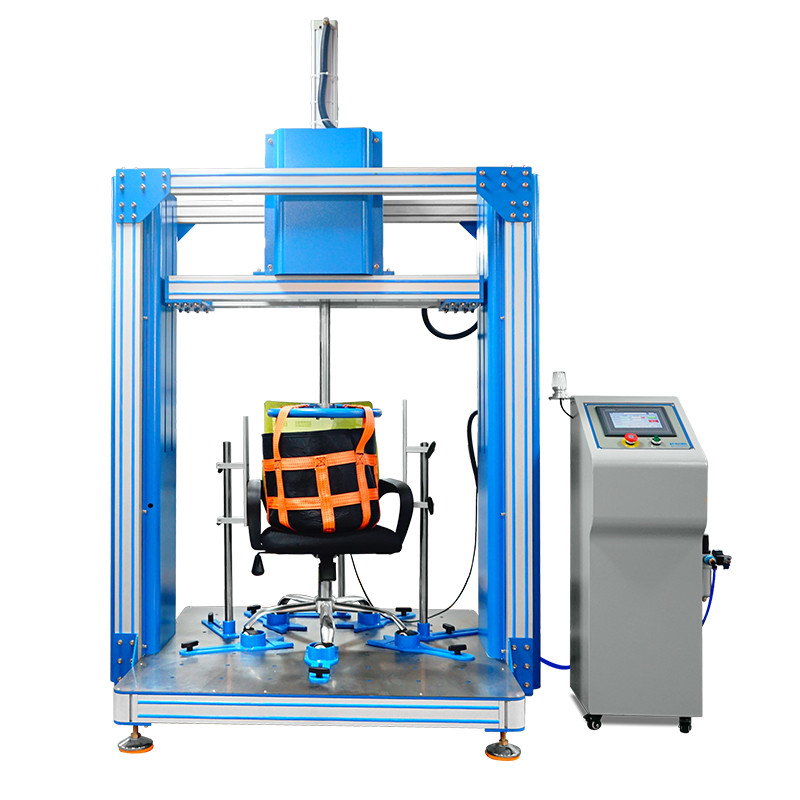

Chair Seating Furniture Testing Machines Cyclic Impact Testing Equipement
Specifications
Test Machine for Chair :
It is used to test the durability of the seat of the chair.
Technical Parameters:
| Control Mode | PLC Control |
| Display Mode | Touch Screen |
| Cylinder Stroke | 300mm |
| Impact Speed | 10～30times/min |
| Seat Height | 200mm～600mm(adjustable) |
| Drop Weight | 57kg,102kg,136kg |
| Drop Height | 30mm,36mm,152mm |
| Test Degree | 1～999999 |
| Weight | About 500kg |
| Power Supply | 1∮ AC 220V |
| Rate of Work | About 200W |
| Data Output | USB |
| Maximum external dimension | 1200mm×1450mm×2600mm(L*W*H) |
| Main testing item | one impact and impact durability test |
| Test standard | Bifma x5.1-2017 |
Main Features:
1. Test sofa or furniture in the overall strength of the collision of the transportation and installation
2. Impact test seat, armrest shock, resting legs impact.
3. The impact of product testing seat, armrest shock, resting legs shock.
4. The main technical parameters:
| 1 digital height indicator Drop height | 3 inches to 16 inches (75mm ~ 406mm) |
| 2 Test Views | 0 ~ 32000 times |
| 3 Maximum specimen size | . (L × W × H) 1000 × 1000 × 1200mm |
| 4 Drop Bag Weight | 75lb, 200lb |
| 5 Dimensions | . (L × W × H) 1600 × 1300 × 2500mm |
| 6 Power | . 3 ∮, AC380V, 50HZ, 1HP |
| 7 Weight (approximately) | about 380kg |
| 8 Transmission | Electric Transmission |
Generl Specifications :
Packaging Dimensions: (W*D*H) 1640*1340*2010mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 726KG
HS Code: 9024800000
Haida Introduction:
Founded in 2004,OUR Group is the recognized Dongguan,China market leader in the testing equipment industry, having four main manufacture series:Accelerated Environmental Series, Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
