Cardboard Thickness Paper Testing Equipments electrical ISO438 534

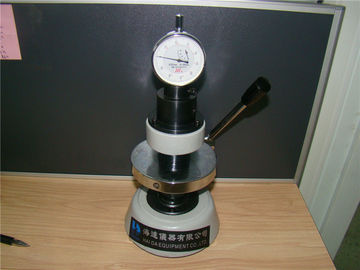

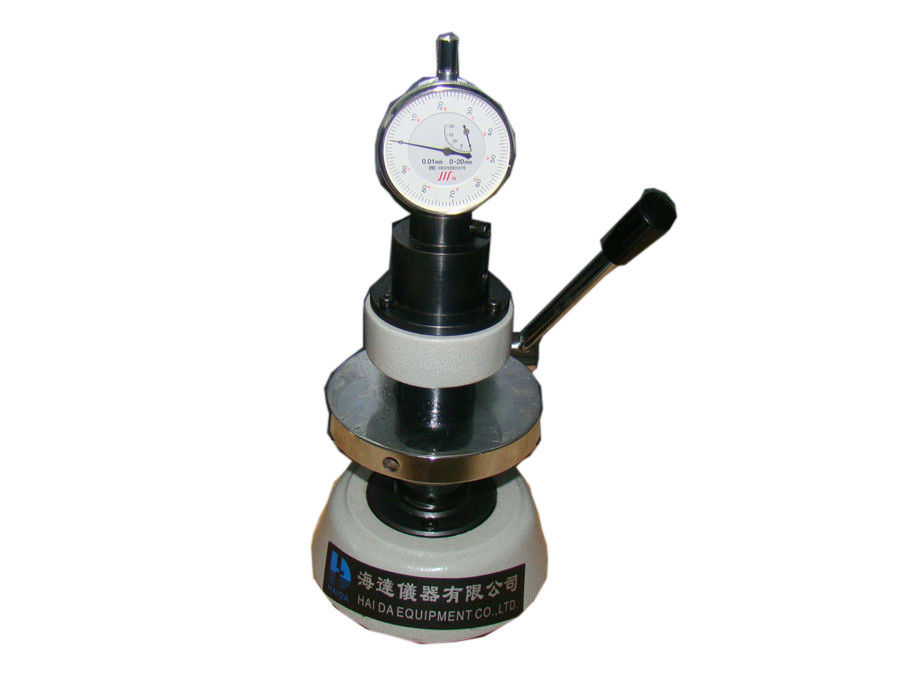

Large Image : Cardboard Thickness Paper Testing Equipments electrical ISO438 534

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-A833

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Usage:

Paper Testing Instrument

Test Standards:

ISO 534 , ISO 3034

Measuring Range:

0-20mm

Accuracy:

0-20mm

Highlight:

paper testing instruments

paper testing machine

Cardboard Thickness Paper Testing Equipments electrical ISO438 534

Paper and cardboard thickness guage Specifications

As per ISO438 , 534
Measuring range : 0-6mm
widely used in paper , cardboard

Paper and cardboard thickness guage description :

This Paper and cardboard thickness is a special apparatus to measure the thickness of paper and cardboard , widely used in paper , cardboard and other sheet materials , and it is an indispensable instrument for cardboard carton production , research and inspection .

Paper and cardboard thickness guage technical parameters :

Test standards	ISO 534 , ISO 3034
Measuring range	0-20mm
Accuracy	0 . 01mm , 0 . 001mm
Contact pressure	100±1 kPa
Contact area	10±0 . 2mm2
Parallelism	≤0 . 005mm
Dimensions	375264400mm
Weight	About 6kg
