Product Details:
Payment & Shipping Terms:
|
| Manufacture Standard: | ASTM-D1238,D3368,JIS-K7210 | Weights: | 1200g, 2160g,3800g,5000g,10000g |
|---|---|---|---|
| Time Setting: | 0.1~999.9min Arbitrarily Setting | Cylinder: | Diameter9.5504±0.0076mm |
| Plunger: | Diameter9.4742±0.0076mm | Size: | (L×W×H)32×51×60cm |
| High Light: | furniture testing equipment,impact testing machine |
||

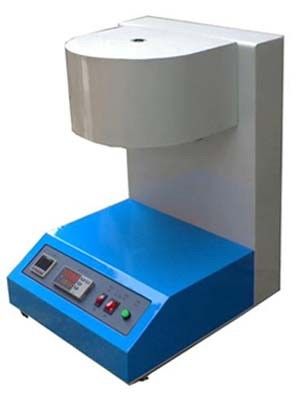

PP PE Furniture Testing Machines ASTM-D1238 Melt Flow Testing Machine
Specifications
Melt Flow testing
1.Melt Flow Indexer is used to determine melt-mass flow rate .
2.High quality,melt indexer
3.Direct factory
Melt Flow testing for PP and PE
1.Melt index tester is used to determine melt-mass flow rate (MFR).
2.High quality,melt indexer
Specification
| Model: | HD-R803 |
| Manufacture standard: | ASTM-D1238,D3368,JIS-K7210 |
| Tempreture control | 50 ~450°C,PID control,Accuracy±0.1°C(including the overtempreture protection) |
| Weights | 1200g, 2160g,3800g,5000g,10000g |
| Automatic cropping device | Automatic cropping and manual operation(optional) |
| Time setting | 0.1~999.9min Arbitrarily setting |
| Cylinder | Diameter9.5504±0.0076mm |
| Plunger: | Diameter9.4742±0.0076mm |
| Thin hole pattern | External diameter:9.5±0.02mm ,bore diameter2.0955±0.0051mm,lenth8.00±0.02mm |
| Size | (L×W×H)32×51×60cm |
| Machine Weight: | 30kg(not including the weights) |
| Power supply | AC220V,5A |
| Accessory | Mercurial thermometer150°C,200°C,250°C,300°C(optional),one cleaning brush, one scraper, one guaid material stick, one observation mirror, one feedstock funnel, three frictioning steel disc, two thin hole pattern determine gauge. |
Product description
Melt Flow Index tester is used to determine melt-mass flow rate (MFR).melt-Volume flow rate (MVR) and melt density of thermoplastic resin.it is applicable not only to the higher melting temperature, such as polycarbonate, nylon, Fluoroplastics, poly oxide and other engineering plastics, and it also applies to plastic measurement of melt lower temperature,such as polyethylene, polystyrene, polypropylene, ABS resin, polyformaldehyde resin. At the same time, it is widely used in plastics raw materials products,the petrochemical industry and related universities, scientific research institutes, and commodity inspection departments.
Melt Flow Index tester is based on designed and manufactured according to latest national and international standards. Its advantage to combined various machine of domestic and international models: compact structure,beautiful appearance Based on designed and manufactured according to latest national and international standards.
