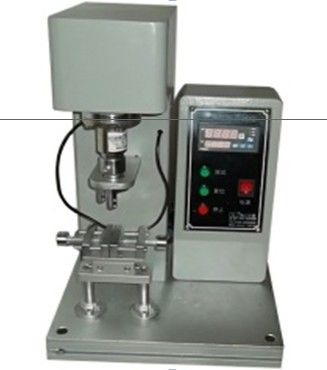

QB/T2171 Zipper Torsion Rubber Testing Machine For Metal Wire

Brand Name:	HAIDA
Model Number:	HD-W002
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Weight:

About 20kg

Dimensions:

500 X 250 X 320mm ( L * W * H )

Power:

AC220V , 50HZ , 80W

Supply Ability:

300 Sets per Month Haida

Highlight:

rubber testing equipments

rubber hardness tester

Product Description

QB/T2171 Zipper Torsion Rubber Testing Machine For Metal Wire

Introduction:

Zipper torsion testing machine film special test all kinds of metal wire enameled wire break strength and the resistance to twist number . Test method for the sample is clamped at both ends , one end is fixed on the other end is continuous 360 degree rotation exercise reversed torsion . To break or sample film enameled off , the exposed conductor , record its resistance to twist number .

Standard:

QB/T2171 , QB/T2172 , QB/T2173 etc . .

Technical parameters :

The 1 torque test range	0 . 1 ～ 2N · M
load precision	≤ ± 1%F · S
loading modes	single torsion : ① the loading direction : clockwise ; the unloading direction : counterclockwise
torsion angle range	0 ~ 300 ℃
power	AC220V , 50HZ , 80W
dimensions	500 x 250 x 320mm ( L * W * H )
weight	About 20kg

Instrument characteristics:

1 , the function configuration ( a single instrument with only one function ) :

Standard functions : anti torsion test : the specimen after the blessing , clockwise rotation of the specimen to the maximum stress fracture process ;

2 , printer interface , with computer interface , online communication , online operation system .

The scope of supply :

1 , a host ; the 2 , a set of calibration lever ; 3 , a foot four ;

4 , printer interface , with computer interface , online communication , online operation system ;

5 , product quality tracking information feedback sheet four ;

6 , product qualification certificate a ;

7 , the instructions for use of products 1

QB/T2171 Zipper Torsion Rubber Testing Machine For Metal Wire 0
