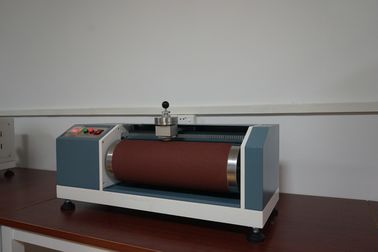

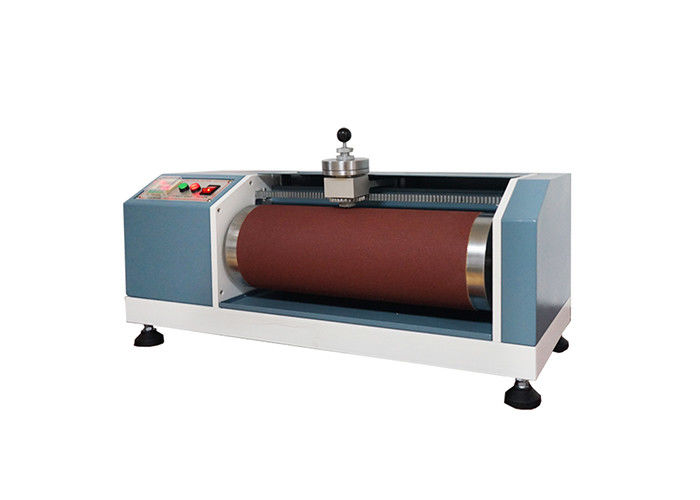

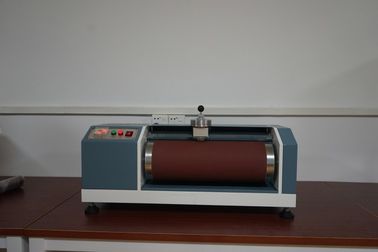

DIN Abrasion Rubber Testing Machine With DIN-53516 / ISO-4649

Brand Name:	HAIDA
Model Number:	HD-P307
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

1∮,AC220V,2 . 6A

Warranty:

1 Year

Specimen Load:

10N ± 0 . 2N

Specimen Size:

¢ 16mm , 6 ~ 15mm ( D )

Roller Speed:

40±1r . P . M

Roller Length:

460mm

Supply Ability:

300 Sets per Month Haida

Highlight:

rubber tensile testing machine

rubber hardness tester

Product Description

DIN Abrasion Rubber Testing Machine With DIN-53516 / ISO-4649

Purpose:

DIN Abrasion Tester for flexible materials,rubber,tires,conveyor belts,shoe soles,soft leather,leather. . . Qualitative measure of wear and other materials,with high efficiency,good reproducibility and easy operation characteristics .

Principle:

At a predetermined contact pressure and a given area , the sample and the sandpaper into a certain angle,the measurement sample at a certain level of friction generated on the abrasive wear resistance .

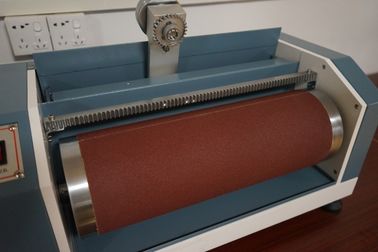

Sandpaper attached to the surface of the roller package,the sample is pressed against the drum with the sandpaper,so that the lateral movement of the drum sample .

Wear the sample in the cylindrical end of the generation,measurement value of the sample mass loss,calculate the volume density of the sample by the amount of wear .

According to the standard:

This instrument reference standard : DIN-53516 , ISO-4649 , GB / T 9867 .

Instrument specifications:

Item	Specification
Specimen load	10N ± 0 . 2N
Specimen size	¢ 16mm , 6 ~ 15mm ( D )
Fixture Load	2 . 5N
Weight load	2 . 5N,5N
Fixture lateral displacement	4 . 2 ± 0 . 04mm / wheel every lap
Wheel diameter	Φ ( 150 ±0 . 2 ) mm
Roller length	460mm
Roller speed	40±1r . p . m
Wear trip	40m ( 20m ) equivalent wheel turns 84 ( 42 )
Attrition rate	0 . 32m/sec
Inclination	3 ° ( test piece vertical support shaft and the roller angle )
Angle of Dimensions	(L×W×H)70×30×30cm
Power	1∮,AC220V,2 . 6A
Weight ( about )	about 61kg
