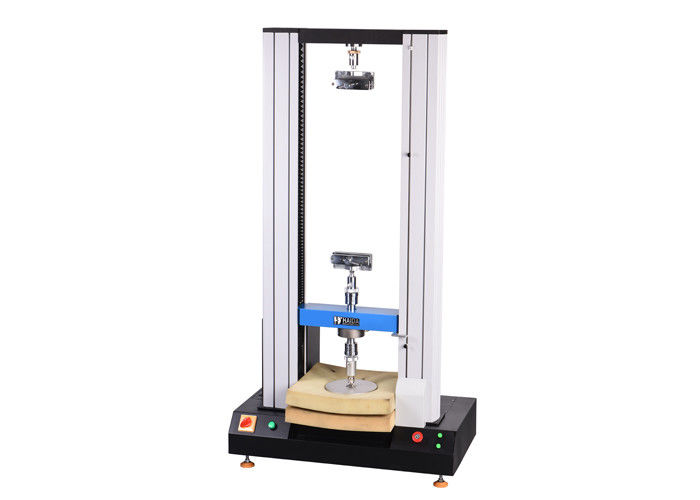

Furniture Testing Machines for Foam Hardness Compression Testing Machine

Brand Name:	HAIDA
Model Number:	HD-F750A
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power Supply:

1∮, AC 220V

Weight:

About 150Kg

Dimensions:

(L * W * H) 880 * 510 * 1490mm

Control Mode:

Computer Control

Load Resolution:

1 / 250,000

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

fatigue testing equipment

Product Description

Furniture Testing Machines for Foam Hardness Compression Testing Machine

APPLICATIONS& TEST PURPOSE

The machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.

DESIGN STANDARD: ASTM D 3574

STANDARD FEATURES

Item	Parameter
Capacity	Sensor 100KG-2T
Motor	Panasonic 400W servo motor
Drive	400w servo drive
Screw	Imported ball screw
Control mode	Computer control, windows mode operation
Speed	Speed adjustable (computer adjusted) 0.1-500mm / min
Maximum stroke	1200mm (including fixture)
Span	≤400mm
Load resolution	1 / 250,000
Load accuracy	≤0.5%
Unit switching	gf / kgf / N // kN / LBf / W / T
Dimensions	(L * W * H) 880 * 510 * 1490mm;
Weight	about 150Kg
Power supply	1∮, AC 220V
Configuration	(Pull-up) Fixture is standard according to customer's sample, (Down-pressure) includes 200mm diameter pressure plate and 380mmX380mm tray with holes
