Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

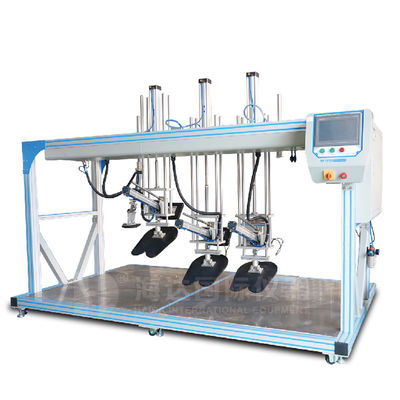

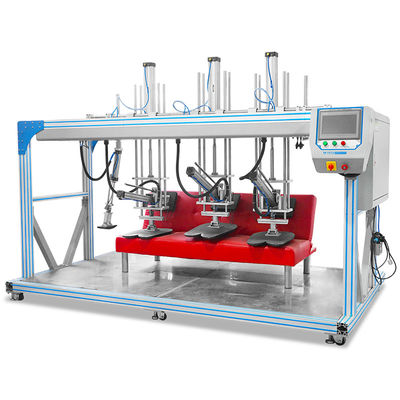

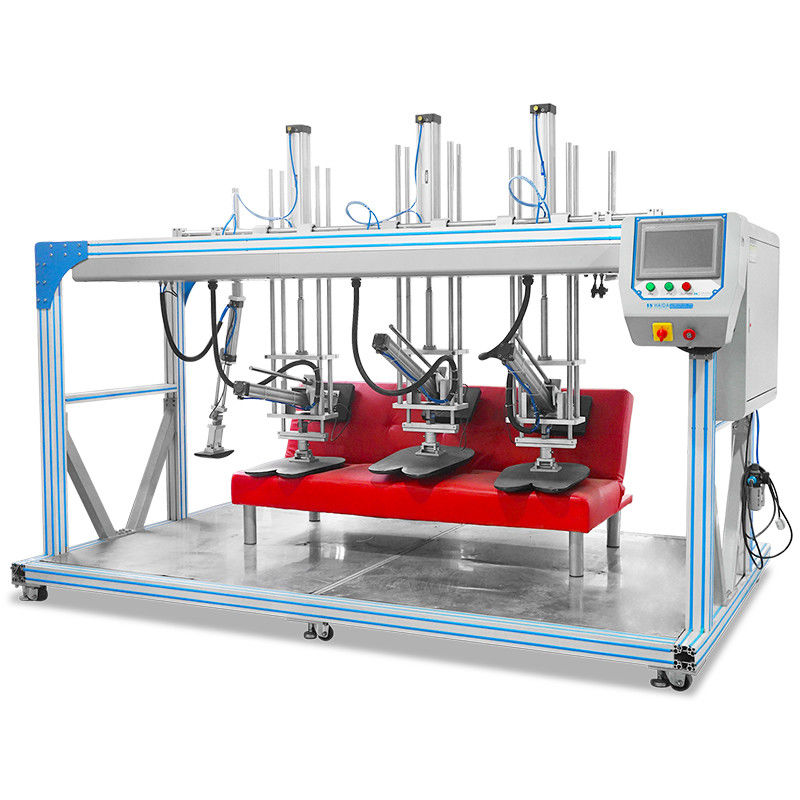

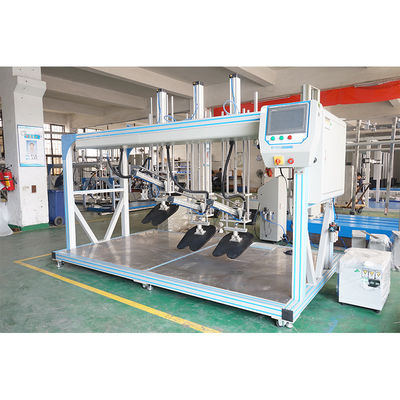

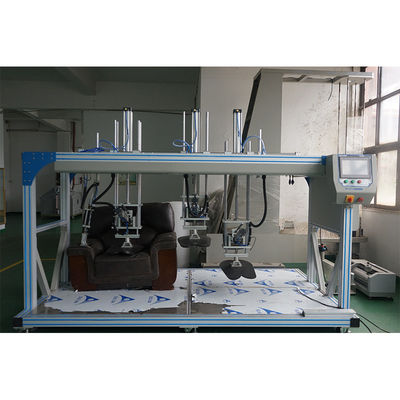

Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability

Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability
Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability

Large Image :  Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F761
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Seat Load: 750 N Backrest Load: 400N
Specimen Size: (L×W×H) About 2200×1200×1200mm Power: 1∮ ,AC220V,50Hz
Test Cycle: 25,000 Times To 200,000 Times
High Light:

furniture testing equipment

,

fatigue testing equipment

Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability



Product description:

This tester simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest. Three tests can work together or independently, also the test position is adjustable.



Main technical parameters:

Three Seating and backrest test modules, one armrest test modules

Item Specification
Seat load 750 N;
Backrest load 400 N
Test cycle 25,000 times to 200,000 times
Pressure sensor accuracy 0.3%. Each force point is equipped with a pressure sensor to read the pressure value.

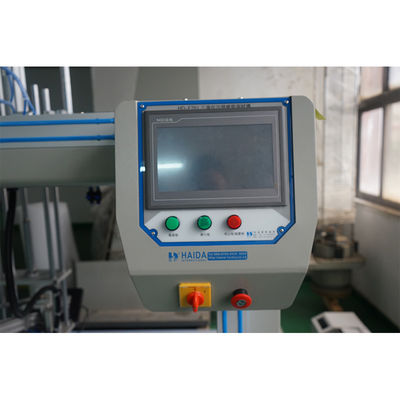

Full range control panel Programmable controller + color display touch screen
Maximum size of test piece (L × W × H) 2200 × 1200 × 1200mm
Machine weight 400kg
Power source 1∮, AC220V, 50Hz
Compressed air 7kg / cm2
It can simulate the durability and service life of the sofa and different parts such as the seat back and armrests, and can perform the alternating durability test on the seat surface, backrest and armrests of the sofa.



Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability 0



Automatic LCD Touch Screen Furniture Testing Machines for Sofa Durability 1
