LCD digital display Paper Testing Equipments , Portable Transmission Densitometer

Brand Name:	HAIDA
Model Number:	HD-A830-5
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Usage:

Paper Testing Instrument

Density Range:

Density D = 0 . 00 ~ 5 . 5 Outlets 0-100%

Aperture Size:

Φ2mm ( Other Sizes Customized )

Inter-instrument:

± 0 . 02D Or 2%

Supply Ability:

300 Sets per Month Haida

Highlight:

paper tensile strength tester

paper testing instruments

Product Description

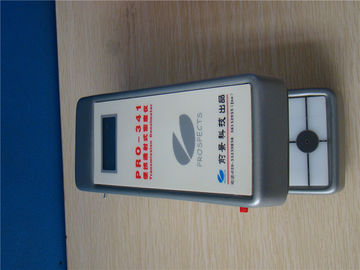

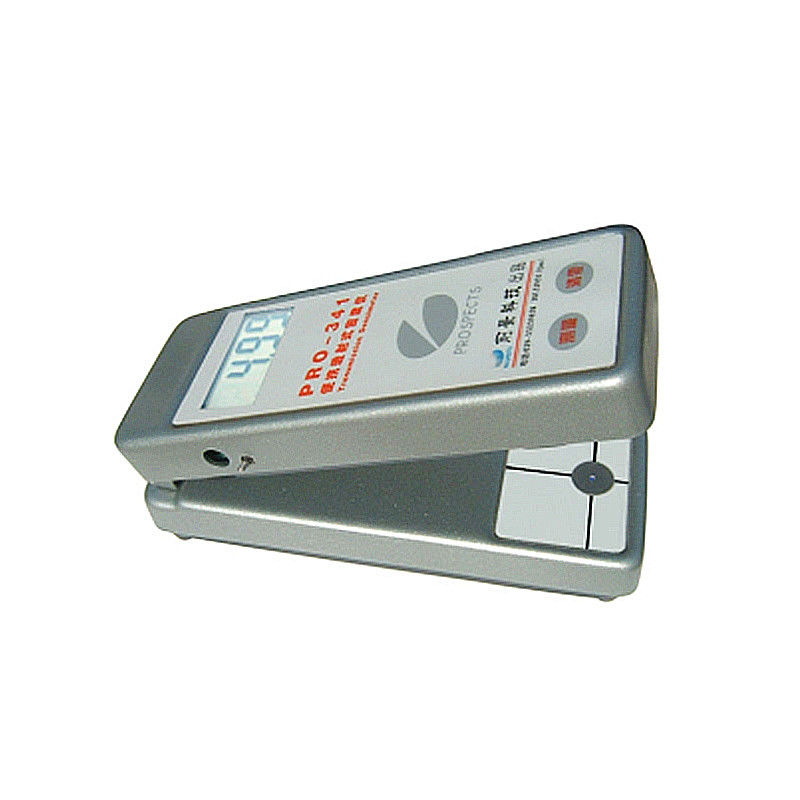

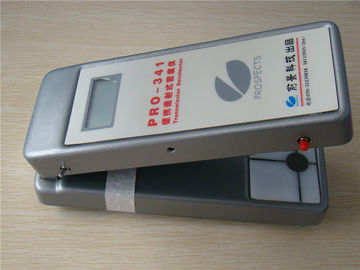

LCD digital display Paper Testing Equipments , Portable Transmission Densitometer

Introduction:

Portable Transmission Densitometer is the first portable transmissive densitometer densitometer domestic portable projection , the product in addition to a reading accuracy , good stability , easy operation and a series of advantages , but also has high-end LCD , portable , measuring a larger and so on . Very suitable for non-destructive testing , photographic materials , films , printing , medical , packaging film ( film , coating film coating film thickness and uniformity testing ) , tinted glass and other industries testing , maintenance and outdoor carry .

Portable Transmission Densitometer technical indicators

Density Range	Density D = 0 . 00 ~ 5 . 5 outlets 0-100%
aperture size	Φ2mm ( other sizes customized )
Inter-instrument	± 0 . 02D or 2%
Repeat accuracy	± 0 . 01D
Uncertainty	0 . 00 ~ 3 . 50 0 . 02D 3 . 50 ~ 4 . 50 0 . 04D 4 . 50 ~ 5 . 50 0 . 08D
Display Type	LCD ( with negative sign ) digital display
Sampling time	0 . 5 seconds / N
Measuring length	165mm
Operating Environment	Temperature 0 ℃ ~ 40 ℃ Relative humidity : ≤ 85%
Power supply	Lithium-ion battery or power adapter
continuous working time ( battery )	12-14 hours
Function	about 3W
Dimensions	210 * 80 * 53mm ( L * W * H )
Weight	500g ( with battery )
