Strength Paper Testing Equipments printing smoothness printability

Brand Name:	HAIDA
Model Number:	HD-A843
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Product Name:

Strength Paper Testing Equipments

The Pendulum Angle:

165 °

The Printing Plate:

φ 65mm φ 65mm × 20mm × 10mm

Printing Pressure:

0 ~ 700N

Supply Ability:

300 Sets per Month Haida

Highlight:

paper testing instruments

paper testing machine

Product Description

Strength Paper Testing Equipments printing smoothness printability

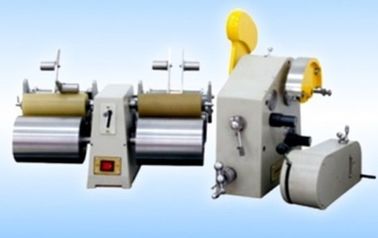

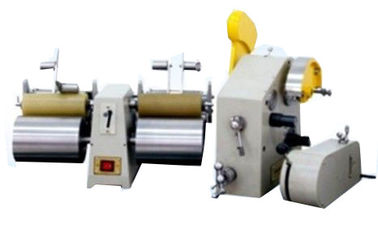

Printability tester

printability tester is equivalent to a small printing machine , can be used forpaper surface strength and printing smoothness , roughness , ink absorption , transfer ink , printing density ( to be equipped with special accessories ) and other printing adaptability test . For paper mills , printing , printing ink factory , paper , inkand other printed material related to printing adaptability test .

main specifications and technical parameters

the pendulum angle	165 °
the printing plate	φ 65mm φ 65mm × 20mm × 10mm
swing speed	( 20 ~ 125 ) cm/s
printing pressure	0 ~ 700N
the sector size fan angle	155 °; radius : 85mm; width : 35mm
rubber pad specifications ( L × B × h , mm )	320 x 35 x 1 . 5
paper pad specifications ( L × B × h , mm )	305 x 35 x 1 . 5
size ( L × B × h , mm )	420 x 260 x 355

Strength Paper Testing Equipments printing smoothness printability 0
