Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Usage: | Paper Testing Instrument |
|---|---|---|---|
| Dimensions (W × H × D) Mm: | 102 × 244 × 63mm | The Shortest Interval: | Three Seconds Can Be Determined |
| Display: | Color Values, Color Values, Pass / Warning / Fail | LCD: | English (default), German, French, Italian, Spanish, Japanese |
| High Light: | paper tensile strength tester,paper testing machine |
||
High Powerful Paper Testing Equipments Hardness For Residential Construction

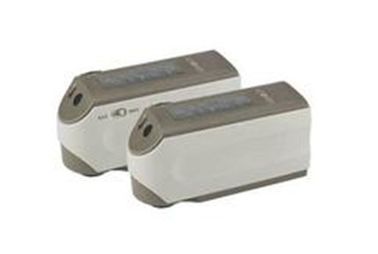

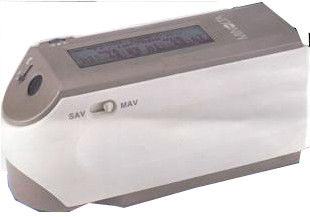

Colorimeter HD-X003-2(CR400)
The new Konica Minolta "CR-400", "CR-410" colorimeter can be measured by measuring the head monomer, which has high accuracy and are versatile and easy to operate.
Type ---- reflective color measurement
Main use: paint, rubber, plastics, printing, fiber, dyeing, food, agriculture, forestry, fisheries, ceramics, nitrogen products, residential construction, medical and academic fields
Colorimeter Products
Renowned color colorimeter series - more powerful and diverse
Colorimeter from the famous series, more powerful and diverse.
New colorimeter CR-400 is a widely recognized and acclaimed CR-100, CR-200, CR-300 series successor. It has a lot of additional features, more versatile, but fully retained the all-optical characteristics, so make sure you can exchange data with the previous model. CR-400 measuring area of 8mm, suitable for measuring various industries reflected color and color difference. It can meet the ingredients, food, raw materials, finished goods, drugs and dermatology, and many other applications
Colorimeter Main Specifications
| Name | colorimeter measuring head |
| Model | CR-400 measuring head CR-410 measuring head |
| Lighting / receiving optical system | d / 0 (diffuse illumination light perpendicular manner; specular component included) (With JIS Z 8722 standard; including regular reflection light) large area lighting vertical light way; specular component included) |
| Light sub-prime silicon photocell | (6) |
| Display range Y | 0.01% ~ 160.00% (reflectance) |
| Measuring light source | pulsed xenon arc lamp |
| Measuring time | 1 s |
| The shortest interval | three seconds can be determined |
| Measurable frequency | 800 times (my company under specified conditions) |
| Measurement / illumination area | Φ8mm / Φ11mmΦ50mm/Φ53mm |
| Repeatability standard deviation ΔE * ab | 0.07 or less (in 10 seconds after white calibration measured 30 times at intervals) |
| Instrument error ΔE * ab | 0.6 or less |
| BCRA Series II 12 colors mean ΔE * ab | 0.8 or less |
| BCRA Series II | 12 colors mean |
| Viewing conditions CIE2 ° approximate color vision functions such as | Observation light source * C, D65 |
| Display | color values, color values, pass / warning / fail |
| Eligibility determination | color difference threshold (box / oval critical) |
| Chromaticity diagram / table color value | XYZ, Yxy, L * a * b *, search Lab, L * C * h, Husserl (only illuminant C), CMC (l: c) , CIE1994, Lab99, LCh99 , CIE2000, CIE WI / Tw (only illuminant D65), WI ASTM E313 (only illuminant C), YI ASTM D1925 (only illuminant C), YI ASTM E313 (only illuminant C), users retrieve (can register up to 6 from a computer ) |
| Use language operating buttons | English |
| LCD | English (default), German, French, Italian, Spanish, Japanese |
| Save Data Quantity | 1000 data (measuring head and data processor save different content) |
| Color reference color | 100 |
| Correction Channel | 20 channels (ch00: white calibration, ch01 ~ ch19: Any correction) |
| Backlit dot matrix LCD display | 15 characters × 9 lines + icon displays a row |
| Interfaces RS-232 standard | connection data processor / PC |
| Baud rate | 4800,9600,19200 (bps); factory-set to 9600bps |
| Power | 4 AAA-size alkaline or Ni-MH batteries or the AC adapter AC-A17 AC120V 50-60Hz 0.4A (for North America and Japan) AC230V 50-60Hz 0.4A (for countries or regions outside of North America) |
| Dimensions (W × H × D) mm |
102 × 244 × 63mm |
| Weight | approx 550g (Including 4 AAA batteries, excluding RS-232C cable) approx 570g (Including 4 AAA batteries, excluding RS-232C cable) |
| Operating temperature / humidity range | 0 ~ 40 ° C, relative humidity 85% or less with no condensation |
| Storage temperature / humidity range | -20 ~ 40 ° C, relative humidity 85% or less with no condensation |
| Other LCD |
backlight ON / OFF function (ON Time: operation key operation or measurement light 30 seconds)
|
| Standard accessories | White Calibration Plate CR-A43, cover CR-A72, tightening clamp CR-A73, AC Adapter AC-A17, 4 AAA batteries White Calibration Plate CR-A44, cover CR-A72, CR-tightening clamp A73, AC Adapter AC-A17, 4 AAA batteries |
About Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
