Pointer Rubber Testing Machine Bench Top Rotational Viscometer

Brand Name:	HAIDA
Model Number:	HD-C801
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Warranty:

1 Year

Weight:

1.5 Kg ( Exclude Bracket)

Viscosity Range:

10~100000mPa.s

Outside Dimension:

280×290×450 Mm

Testing Error:

±5% (Newton Type Liquid)

Supply Ability:

300 Sets per Month Haida

Highlight:

rubber tensile testing machine

rubber hardness tester

Product Description

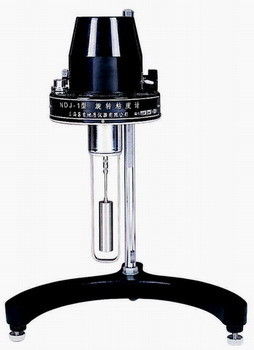

Pointer Rubber Testing Machine Bench Top Rotational Viscometer

Specifications:

Rotational Viscometer
1.High quality, high accuracy
2.Reasonable price
3.Great after-sale service

Rotational Viscometer Introduction:

Rotational Viscometer is suitable to test liquid viscosity resistance and the absolute viscosity of liquids. Rotational Viscometer is widely used to measure the viscosity of petroleum, grease, paint, paste, food, drugs, cosmetics and other liquids. It is quipped with the four rotors of NO.1~4, which are selectable to use according to the level of viscosity of the testing liquid.

Pointer Type Rotational Viscometer
Model	HD-C801
Viscosity Range	10~100000mPa.s
Testing Error	±5% (Newton Type Liquid)
Serial Number of Rotor	1# ~ 4#
Rotate-speed	6, 12, 30, 60 r/min
Outside Dimension (L×W×H)	280×290×450 mm
Weight	1.5 Kg ( exclude bracket)
Optional Accessories	HWY-10 multi-functional constant temperature water bath; 0 # rotor; glass temperature cycle cup

NDJ Series Digital Viscometer (NDJ-1S/NDJ-5S/NDJ-8S) is a kind of intelligent instrument that is based on16 bits high-performance single chip microprocessor technology. It completely abandons the old method of gear speed and stepping motor based on programmable setting operates smoothly and accurately. Run motor by the torque sensor driving rotor to rotate with constant speed. As the rotor is subject to viscous resistance in tested liquid, viscosity of measured liquid will be displayed in

the LCD screen after testing and processing. Compared to the same kind of machine ,This machine has the advantages of

easy and efficient operation, high accuracy measurement, stable rotating speed, good anti-jamming performance and high

working voltage(110V,220V,50HZ,60HZ available).It has the percent of measured values and full range,

which is convenient for the user to choose accurate rotor and rotating speed to measure the liquid.
