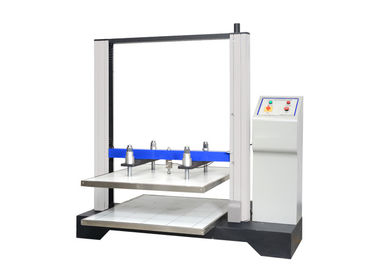

Electronic Carton Compression Testing Instrument Compression Testing Equipments

Brand Name:	HAIDA
Model Number:	HD-A501
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

Unit (switchable):

Kg, Lb, N

Capacity (optional):

Load Resolution:

1/100,000

Stroke (exclude The Grips):

400 Mm

Load Accuracy:

≤0.5%

Test Space (L×W×H):

800×1000×1000mm

Supply Ability:

300 Sets per Month Haida

Highlight:

packaging testing instruments

paper and packaging material testing instruments

Product Description

Electronic Carton Compression Testing Instrument compressionTesting Equipments

Specifications

Carton Compression Testing Instrument
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,

1.About the machine:

carton compression testing instrument electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

2.Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

3.Specifications:

Carton Compression Testing Instrument

Model	HD-A501-800
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2T
Load Resolution	1/100,000
Stroke (exclude the grips)	400 mm
Load Accuracy	≤0.5%
Test Space (L×W×H)	800×1000×1000mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display
Dimension (L×W×H)	2370×1500×2100mm (can be custom made)
Power	1ø, 220v/ 50Hz
Weight	Approx. 850kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

4.Features

Carton Compression Testing Instrument
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

The certification

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
