500kg Capacity Stainless Steel Paper Testing Equipments For Electric Ware Bursting

Brand Name:	HAIDA
Model Number:	HD-A513-A
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Capacity (Optional):

High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2)

Unit (sitchable):

Kgf, Ibf, N

Accuracy:

Within ± 0.2%

Dimensions:

(L × W × H) 480mm × 460mm × 550mm

Speed Of Compression:

(10 ± 3) Mm / Min

Capacity Selection:

500kg Imported Sensor

Supply Ability:

300 Sets per Month Haida

Highlight:

paper testing instruments

paper testing machine

Product Description

500kg Capacity Stainless Steel Paper Testing Equipments FOR Electric Ware Bursting

The product Description:

Crushing Strength Testing Machine to a certain size in the sample (corrugated paper)within a circular formation, between the upper and lower clamp pressure, can bear the most energetically before the sample is crushing

The parameters:

Item	Parameter
Capacity selection	500kg imported sensor
Induction	LOAD CELL force sensor
Unit switching	kgf, Ibf, N
Load resolution	1 / 100,000
Load accuracy	within ± 0.2%
The highest resolution	0.1N
Test speed	(10 ± 3) mm / min
Pressure plate	diameter 118mm or depending on the diameter of the flat-pressed sample
Ring pressure sample	152mm × 12.7mm
Edge pressure sample	100mm × 25mm
Flat pressure guide block	thickness 12-15mm, Ф120mm;
Dimensions	(L × W × H) 480mm × 460mm × 550mm
Display mode	panel control, LED LCD screen display + expandable computer type adopts TM2101 computer system software control, windows mode operation + can display a variety of test curves;
Weight	about 70kg
Power supply	1∮, 220V, 50Hz, 2A

Product images:

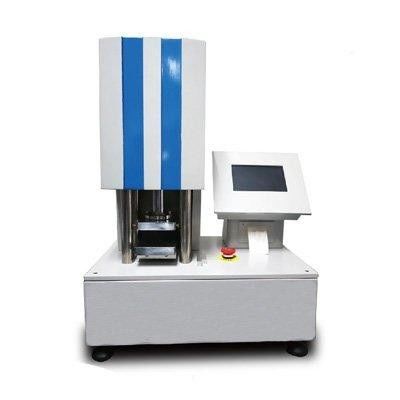

500kg Capacity Stainless Steel Paper Testing Equipments For Electric Ware Bursting
