| Capacity (Optional): | High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2) | Unit (switchable): | Kpa, Psi, Kg/cm^2 |
|---|---|---|---|
| Accuracy: | 0.5% | Pressure Range: | 250~5600kpa |
| Speed Of Compression: | High Pressure 170±10ml/min | Oil: | 85% Glycerin; 15% Distilled Water |
| High Light: | paper tensile strength tester,paper testing instruments |
||
Fully Automatic Bursting Strength Paper Testing Equipments With Paper Paperboard
The Usage:
Bursting strength tester is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.It is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically.
Main Technical Parameters
| Capacity |
0-15kgf/cm2 for paper |
| Control mode | Digital display |
| Unit | Kpa, psi (Lbs/in2), kgf/cm2 |
| Load Resolution | 0.001 kgf/cm2 |
| Material | SS button, SUS # 304 clamp ring |
| Sensing method | Pressure Transmitter |
| Indicating method | Digital display |
| Operation method | Automatic |
| Hydraulic oil | 100% silicone oil |
| Ring Material | Stainless Steel SUS304 |
| Pressure speed | 95 ml/min (Paper); 170±15ml/min (Paperboard) |
| Size of clamp ring | Φ31.5±0.1 |
| Motor | 90W governor motor |
| Dimension (L×W×H) | 445mm×425mm×525mm |
| Weight | Approx. 75kg |
| Power | 1∮, AC220± 10%, 50Hz |
| Accessories |
One piece rubber membrane |

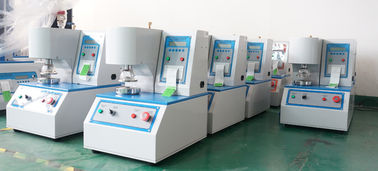

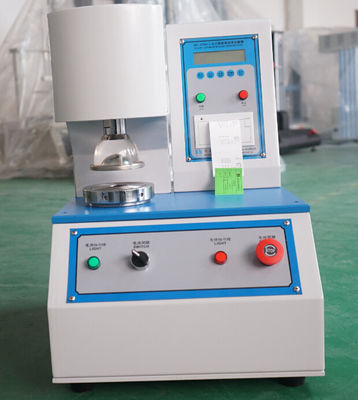

Product Image
Design Standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
The Character:
it is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.
About Us
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
