JIS Z0237 Rubber Testing Machine with Initial Adhesion Ball Tape

Large Image : JIS Z0237 Rubber Testing Machine with Initial Adhesion Ball Tape

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-C525
Power:	Electric
Port:	ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Testing Criteria:	GB/T 4852,JIS Z0237	Angle:	0°~45°adjustable
Testing Angle:	20°,30°,40°	Sample Size:	Width(10-80)mm,length Is More Than 250mm,number Of Sample Is No Less Than 4 Pieces
Size Of The Ball:	Diameter 1/32”-1” In Wooden Box	Leaning Panel:	5mm Thickness Glass
Highlight:	rubber tensile testing machine , rubber hardness tester

JIS Z0237 Rubber Testing Machine with Initial Adhesion Ball Tape

Specifications

Initial Adhesion Ball Tape Testing Machine is used to test adhensive strength of tape and judge the initial adhension.

1.Function

Initial Adhesion Ball Tape Testing Machine is used to test the initial adhesion of pressure sensitive tape and the like. It’s easy to operate and with high practicability.

2. Theory

Let the steel ball roll over the tape placed on the leaning surface, valuate its initial adhesion according to the size of the maximum ball that the given tape length can stick.

Technical Parameter;

Testing criteria	GB/T 4852,JIS Z0237
Angle	0°~45°adjustable
Testing angle	20°,30°,40°
Sample size	width(10-80)mm,length is more than 250mm,number of sample is no less than 4 pieces
Size of the ball	diameter 1/32”-1” in wooden box
Leaning panel	5mm thickness glass
Primary runway	(L)100mm
Outer dimension	(L×W×H) 500×200×300 mm
Weight	8kg

3.Company Services:

All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.

The certification

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

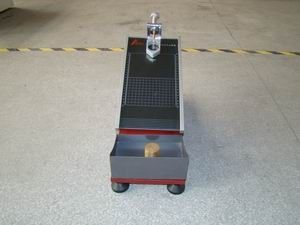

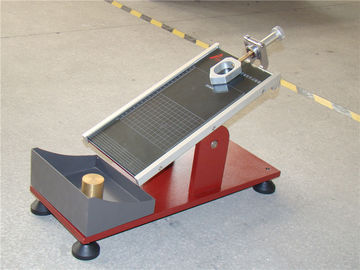

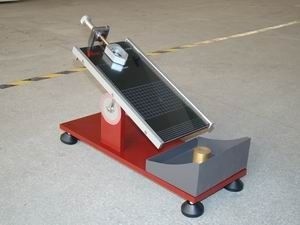

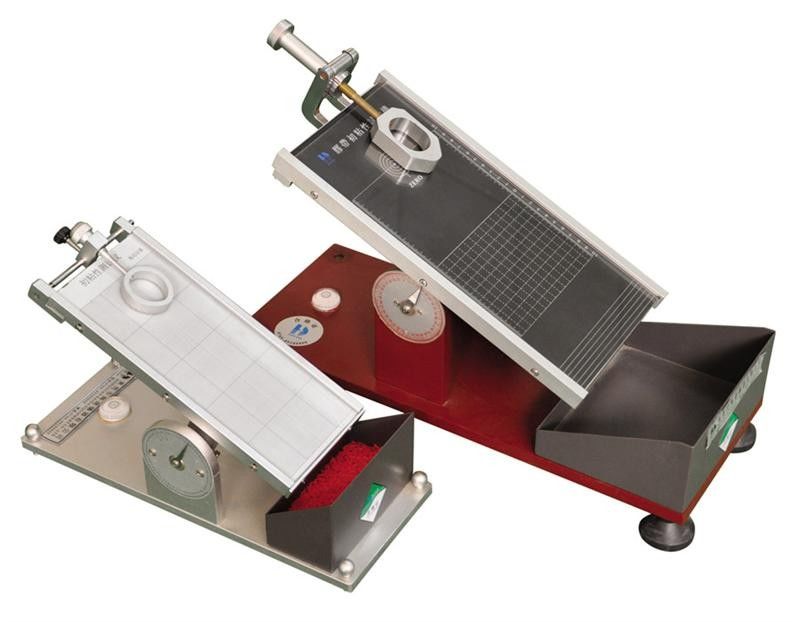

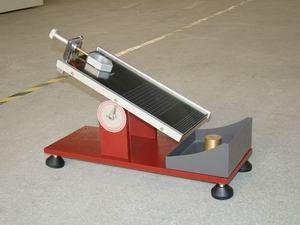

JIS Z0237 Rubber Testing Machine with Initial Adhesion Ball Tape 0

JIS Z0237 Rubber Testing Machine with Initial Adhesion Ball Tape 1
