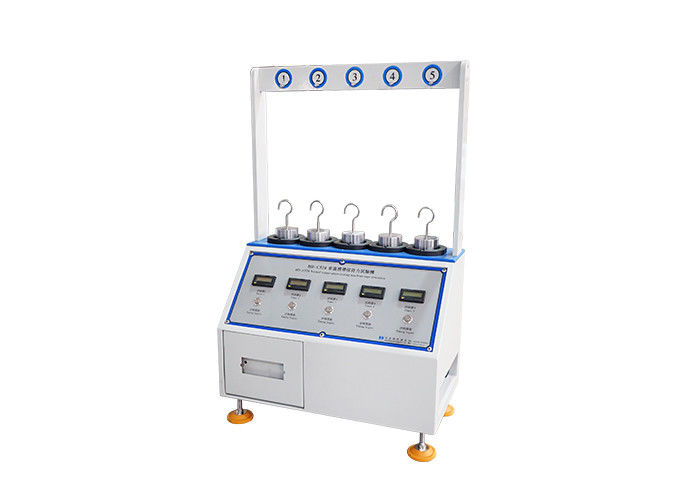

Room Rubber Testing Machine TEM Adhesion Tape Retentively testing

Large Image : Room Rubber Testing Machine TEM Adhesion Tape Retentively testing

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-C524-1
Power:	Electric
Port:	ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power:

Electronic

Width:

40~50 Mm

Length:

60~125 Mm

Highlight:

rubber tensile testing machine

rubber hardness tester

Room Rubber Testing Machine TEM Adhesion Tape Retentively testing

Parameters:

Thickness of the sample	1.5~2.0 mm,
Width	40~50 mm,
Length	60~125 mm
Roller	2 000 g±50 g
Load panel+ weight+ connect rod	100g±10g
Sample size	5mm×100mm
Counter	10 groups,99999.9 hours
Steel testing panel	10 pieces
Steel loading panel	10 pieces
Outer size	(L×W×H) 1060×250×650 mm
Weight	65kg

Accessories

Outer material: advanced coating + aluminum alloy

Testing steel panel; 0Cr18Ni9 or Cr18Ni9Ti
Loading steel panel;Cr18Ni9 or 1Cr18Ni9Ti
Weight;stainless steel
Rubber layer of roller; hardness of the rubber is 80°±5°, thickness is6 mm

Installation of accessory; instruction one set, roller one set, weight 5 set, steel testing panel/loading panel each 5 pieces

Room Rubber Testing Machine TEM Adhesion Tape Retentively testing 0
